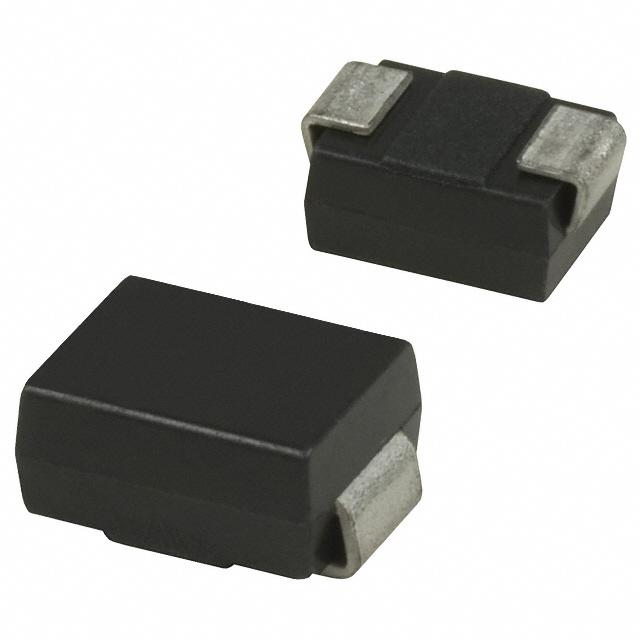

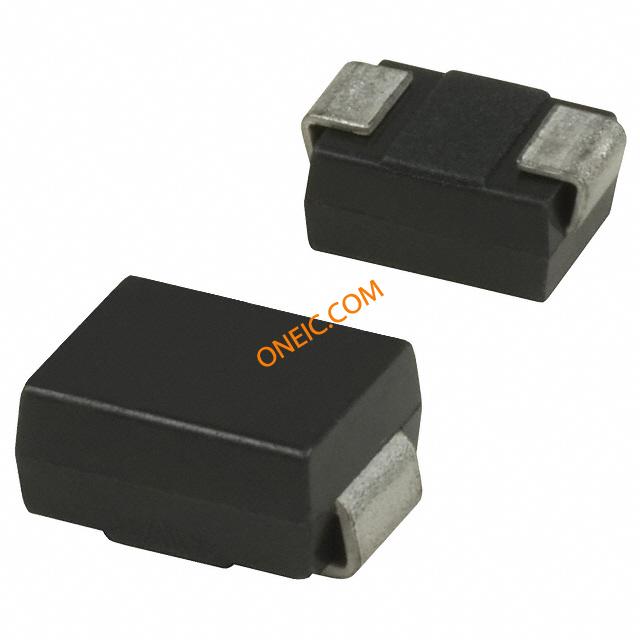

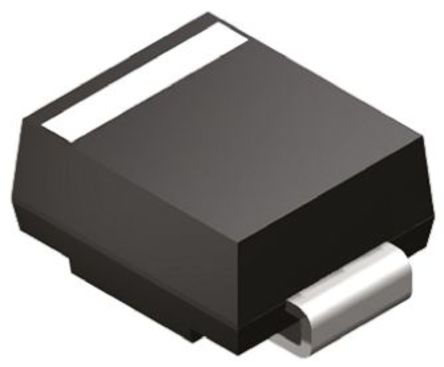

SMBJ28A

FAIRCHILD SEMICONDUCTOR  SMBJ28A  TVS二极管, TVS, SMBJ系列, 单向, 28 V, 45.4 V, DO-214AA, 2 引脚

The SMBJ series Transient Voltage Suppressor Diode offers 600W peak pulse power dissipation on 10/1000µs waveform. It has excellent clamping capability, fast response time of <1ps from 0V to BV minimum for unidirectional and 5ns for bidirectional.

.

Low incremental surge resistance

.

Glass-passivated junction

.

Available in unidirectional and bidirectional

.

<1mA above 10V IR

.

-55 to 150°C Operating junction temperature range
