7.5 A 0.39 V 肖特基整流器 表面贴装 - TO-252-3

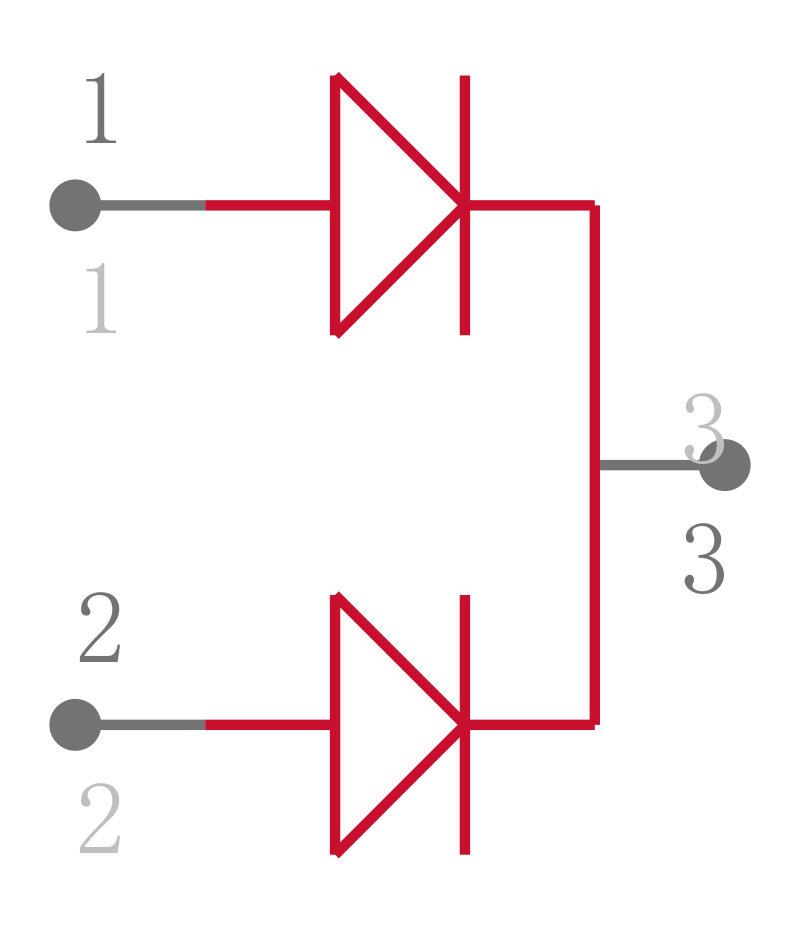

Diode Array 1 Pair Common Cathode Schottky 30V 7.5A Surface Mount TO-252-3, DPak 2 Leads + Tab, SC-63
立创商城:
30V 7.5A 480mV@7.5A
得捷:
DIODE ARRAY SCHOTTKY 30V DPAK
贸泽:
Schottky Diodes & Rectifiers 2X7.5 Amp 30 Volt
e络盟:
肖特基整流器, 30 V, 15 A, 双共阴极, TO-252, 3 引脚, 570 mV
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode STPS15L30CB-TR rectifier from STMicroelectronics. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a dual common cathode configuration. Its peak non-repetitive surge current is 75 A, while its maximum continuous forward current is 15 A.
安富利:
Diode Schottky 30V 15A 3-Pin2+Tab DPAK T/R
富昌:
STPS15L 系列 双 中心抽头 7.5 A 30 V 表面贴装 肖特基 整流器 - TO-252-3
Chip1Stop:
Diode Schottky 30V 15A 3-Pin2+Tab DPAK T/R
Verical:
Rectifier Diode Schottky 30V 15A 3-Pin2+Tab DPAK T/R
儒卓力:
**S-Diode 30V 15A 0.39V TO252-3 **
Win Source:
DIODE ARRAY SCHOTTKY 30V DPAK
额定电压DC 30.0 V
额定电流 15.0 A
针脚数 3
正向电压 0.57 V
正向电流 15 A
最大正向浪涌电流(Ifsm) 75 A
正向电压Max 480mV @7.5A
正向电流Max 15000 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
工作结温 150℃ Max
安装方式 Surface Mount
引脚数 3
封装 TO-252-3

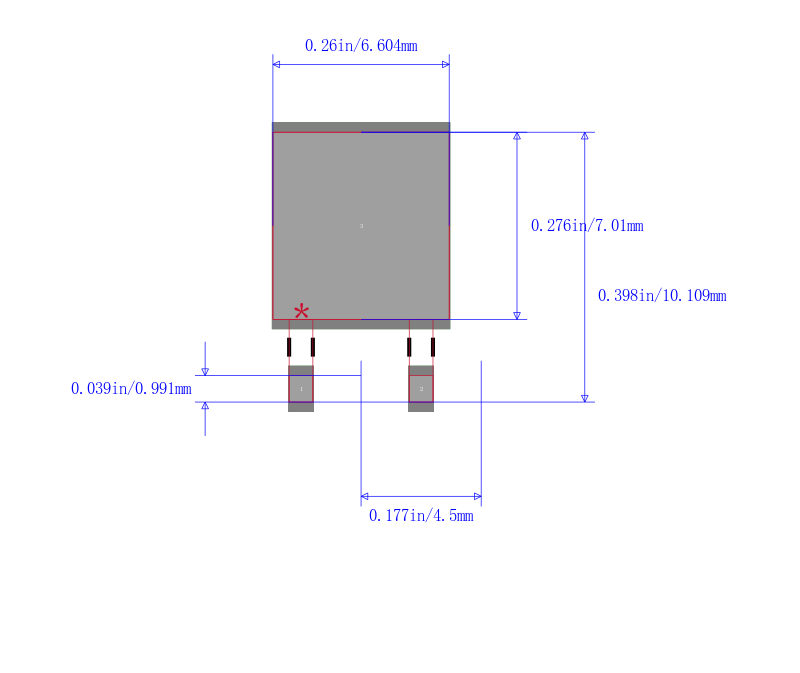

长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STPS15L30CB-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS15L30CB 意法半导体 | 类似代替 | STPS15L30CB-TR和STPS15L30CB的区别 |
MBRD630CTT4G 安森美 | 功能相似 | STPS15L30CB-TR和MBRD630CTT4G的区别 |
12CWQ03FNTRPBF 威世 | 功能相似 | STPS15L30CB-TR和12CWQ03FNTRPBF的区别 |
