双路低噪声运算放大器 DUAL LOW-NOISE OPERATIONAL AMPLIFIERS
The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
电源电压DC 30.0 V
供电电流 8 mA
电路数 2
通道数 2
共模抑制比 70dB ~ 100dB
输入补偿漂移 0.00 V/K
带宽 10.0 MHz
转换速率 9.00 V/μs
增益频宽积 10 MHz
输入补偿电压 4 mV
输入偏置电流 200 nA
工作温度Max 85 ℃
工作温度Min 40 ℃
增益带宽 10 MHz
共模抑制比Min 70 dB
电源电压Max 30 V
电源电压Min 10 V
安装方式 Through Hole

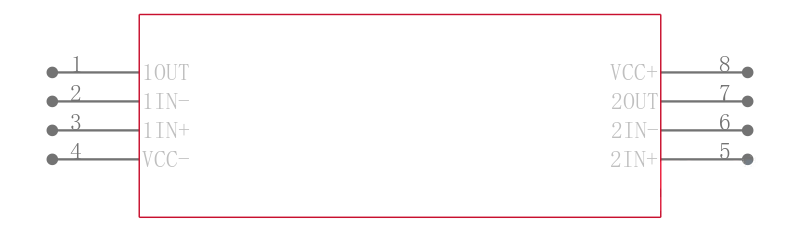

引脚数 8
封装 PDIP-8
长度 9.81 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SA5532P TI 德州仪器 | 当前型号 | 当前型号 |
NE5532P 德州仪器 | 类似代替 | SA5532P和NE5532P的区别 |
NE5532ADR 德州仪器 | 类似代替 | SA5532P和NE5532ADR的区别 |
NE5532AP 德州仪器 | 类似代替 | SA5532P和NE5532AP的区别 |
