双向 40V 400W
400 Watt Transient Voltage Suppressors 5.0 to 440 Volts
Features
• For Surface Mount Applications
• Unidirectional And Bidirectional
• Low Inductance
• High Temp Soldering: 260°C for 10 Seconds At Terminals
• For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance
• UL Recognized File # E331408
• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
得捷:
TVS DIODE 40VWM 64.5VC DO214AC
立创商城:
双向 Vrwm:40V 400W
艾睿:
Micro Commercial Components&s; SMAJ40CA-TP TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 400Min W. This device&s;s maximum clamping voltage is 64.5 V and minimum breakdown voltage is 44.4 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Bi-Dir 40V 400W 2-Pin SMA T/R
Verical:
SMAJ40CA-TP
额定电压DC 40.0 V
额定功率 400 W
击穿电压 44.4 V
电路数 1
钳位电压 64.5 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 44.4 V
击穿电压 44.4 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2

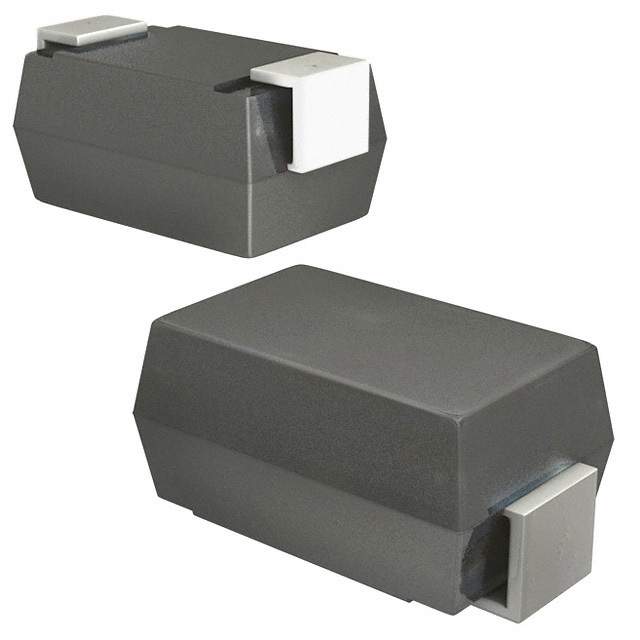

封装 DO-214AC
长度 4.6 mm
宽度 2.90 mm
高度 2.44 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ40CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAJ40CAE3/61 威世 | 完全替代 | SMAJ40CA-TP和SMAJ40CAE3/61的区别 |
SMAJ40CA-13 美台 | 类似代替 | SMAJ40CA-TP和SMAJ40CA-13的区别 |
SMAJ40C-TP 美微科 | 类似代替 | SMAJ40CA-TP和SMAJ40C-TP的区别 |
