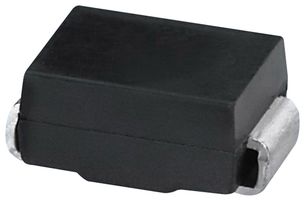

MICRO COMMERCIAL COMPONENTS SMAJ26A-TP 二极管, TVS, 1W, 42.1V, 单向, DO-214AC
400 Watt Transient Voltage Suppressors 5.0 to 440 Volts
Features
• For Surface Mount Applications
• Unidirectional And Bidirectional
• Low Inductance
• High Temp Soldering: 260°C for 10 Seconds At Terminals
• For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance
• UL Recognized File # E331408
• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
得捷:
TVS DIODE 26VWM 42.1VC DO214AC
立创商城:
单向 Vrwm:26V 400W
e络盟:
MICRO COMMERCIAL COMPONENTS SMAJ26A-TP 二极管, TVS, 1W, 42.1V, 单向, DO-214AC
艾睿:
This SMAJ26A-TP TVS diode from Micro Commercial Components protects against overvoltages. Its peak pulse power dissipation is 400Min W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 42.1 V and minimum breakdown voltage is 28.9 V. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 26V 400W 2-Pin SMA T/R
Verical:
Diode TVS Single Uni-Dir 26V 400W 2-Pin SMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SMAJ26A-TP TVS Diode, SMAJ Series, Unidirectional, 26 V, 42.1 V, DO-214AC, 2 Pins
额定电压DC 26.0 V
额定功率 400 W
击穿电压 28.9 V
电路数 1
针脚数 2
钳位电压 42.1 V
测试电流 1 mA
最大反向击穿电压 31.9 V
脉冲峰值功率 400 W
最小反向击穿电压 28.9 V
击穿电压 28.9 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.90 mm
高度 2.44 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ26A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAJ24A 伯恩斯 | 功能相似 | SMAJ26A-TP和SMAJ24A的区别 |
SMAJ26A-13-F 美台 | 功能相似 | SMAJ26A-TP和SMAJ26A-13-F的区别 |
SMAJ24A-E3/61 威世 | 功能相似 | SMAJ26A-TP和SMAJ24A-E3/61的区别 |
