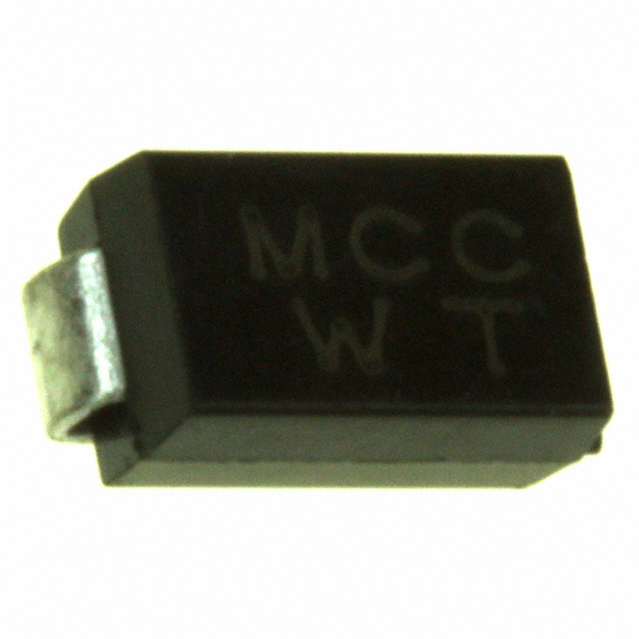

MICRO COMMERCIAL COMPONENTS SMAJ20CA-TP 二极管, TVS, 1W, 32.4V, 双向, DO-214AC
400 Watt Transient Voltage Suppressors 5.0 to 440 Volts
Features
• For Surface Mount Applications
• Unidirectional And Bidirectional
• Low Inductance
• High Temp Soldering: 260°C for 10 Seconds At Terminals
• For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance
• UL Recognized File # E331408
• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
得捷:
TVS DIODE 20VWM 32.4VC DO214AC
立创商城:
双向 Vrwm:20V 400W
e络盟:
二极管, TVS, 1W, 32.4V, 双向, DO-214AC
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMAJ20CA-TP TVS diode from Micro Commercial Components. Its peak pulse power dissipation is 400Min W. This device&s;s maximum clamping voltage is 32.4 V and minimum breakdown voltage is 22.2 V. Its maximum leakage current is 1 μA. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
Chip1Stop:
Diode TVS Single Bi-Dir 20V 400W 2-Pin SMA T/R
Verical:
TVS Diode Single Bi-Dir 20V 400W 2-Pin SMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SMAJ20CA-TP TVS Diode, SMAJ Series, Bidirectional, 20 V, 32.4 V, DO-214AC, 2 Pins
额定电压DC 20.0 V
工作电压 20 V
额定功率 400 W
击穿电压 22.2 V
电路数 1
针脚数 2
耗散功率 400 W
钳位电压 32.4 V
测试电流 1 mA
最大反向击穿电压 24.5 V
脉冲峰值功率 400 W
最小反向击穿电压 22.2 V
击穿电压 22.2 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.90 mm
高度 2.44 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ20CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAJ20CA 伯恩斯 | 功能相似 | SMAJ20CA-TP和SMAJ20CA的区别 |
SMAJ22CA 力特 | 功能相似 | SMAJ20CA-TP和SMAJ22CA的区别 |
