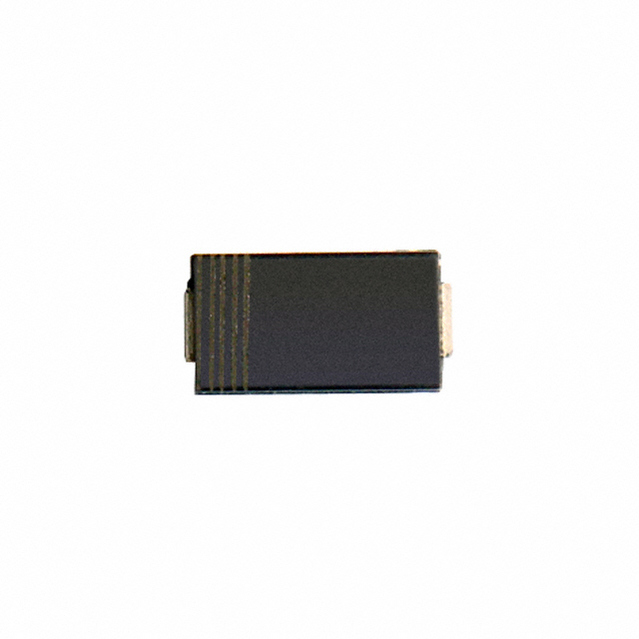

SMAJ20A-TP

单向 20V

400 Watt Transient Voltage Suppressors 5.0 to 440 Volts

Features

•  For Surface Mount Applications

•  Unidirectional And Bidirectional

•  Low Inductance

•   High Temp Soldering: 260°C for 10 Seconds At Terminals

•   For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance

•   UL Recognized File # E331408

•   Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

立创商城:
单向 Vrwm:20V 400W

得捷:
TVS DIODE 20VWM 32.4VC DO214AC

贸泽:
ESD Suppressors / TVS Diodes 20V 400 Watts

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this SMAJ20A-TP TVS diode from Micro Commercial Components. This device&s;s maximum clamping voltage is 32.4 V and minimum breakdown voltage is 22.2 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 400Min W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Verical:
TVS Diode Single Uni-Dir 20V 400W 2-Pin SMA T/R
