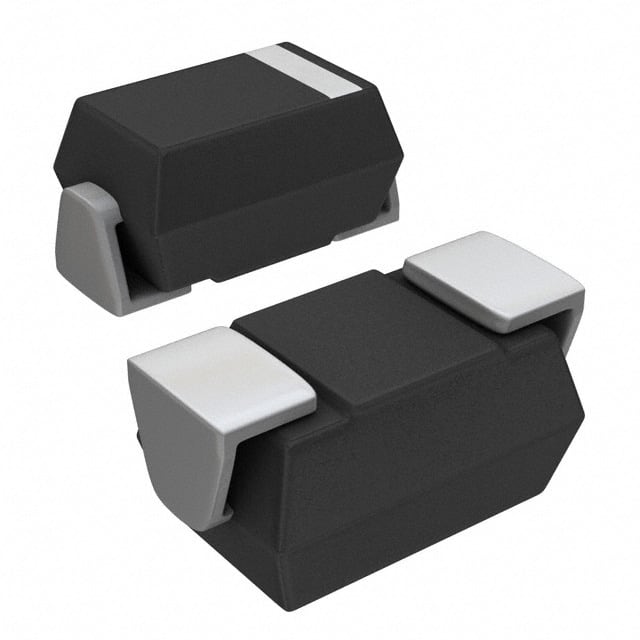

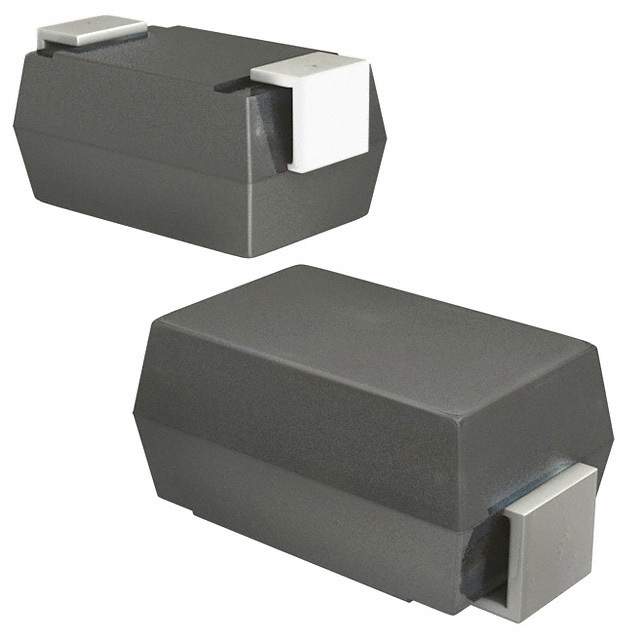

SMAJ28CA-TP

MICRO COMMERCIAL COMPONENTS  SMAJ28CA-TP  二极管, TVS, 1W, 45.4V, 双向, DO-214AC

400 Watt Transient Voltage Suppressors 5.0 to 440 Volts

Features

•  For Surface Mount Applications

•  Unidirectional And Bidirectional

•  Low Inductance

•   High Temp Soldering: 260°C for 10 Seconds At Terminals

•   For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance

•   UL Recognized File # E331408

•   Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

得捷:
TVS DIODE 28VWM 45.4VC DO214AC

立创商城:
双向 Vrwm:28V 400W

e络盟:
MICRO COMMERCIAL COMPONENTS  SMAJ28CA-TP  二极管, TVS, 1W, 45.4V, 双向, DO-214AC

艾睿:
This SMAJ28CA-TP TVS diode from Micro Commercial Components is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its peak pulse power dissipation is 400Min W. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 45.4 V and minimum breakdown voltage is 31.1 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

Chip1Stop:
Diode TVS Single Bi-Dir 28V 400W 2-Pin SMA T/R

Newark:
# MICRO COMMERCIAL COMPONENTS  SMAJ28CA-TP  TVS Diode, SMAJ Series, Bidirectional, 28 V, 45.4 V, DO-214AC, 2 Pins
