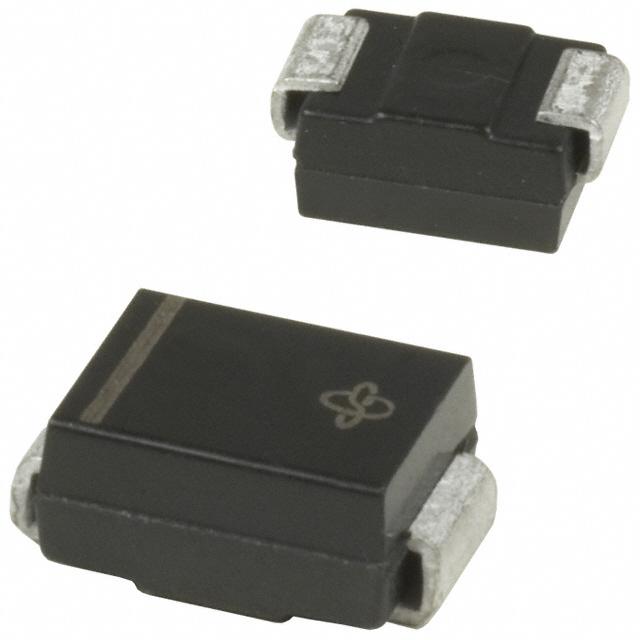

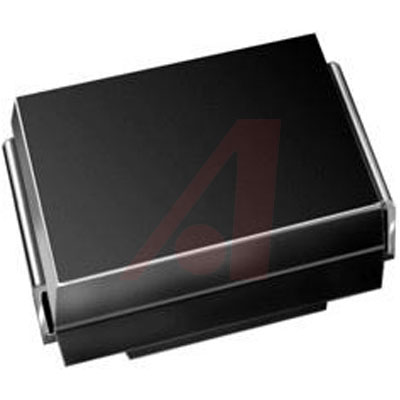

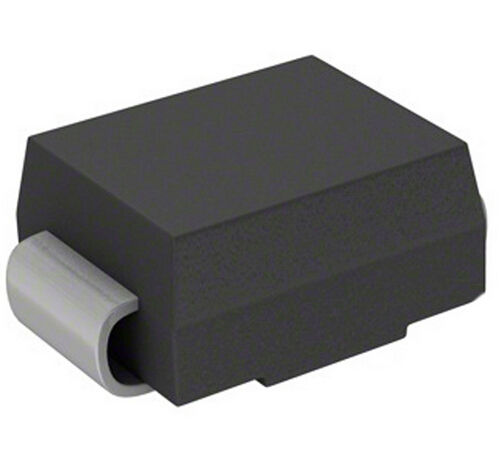

VISHAY SMBJ24CA-E3/52 TVS二极管, TVS, TRANSZORB SMBJ系列, 双向, 24 V, 38.9 V, DO-214AA, 2 引脚
The TRANSZORB SMBJ series surface-mount Transient Voltage Suppressor Diode offers 600W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
额定电压DC 24.0 V
工作电压 24 V
额定电流 15.4 A
额定功率 600 W
击穿电压 29.5 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 38.9 V
测试电流 1 mA
最大反向击穿电压 29.5 V
脉冲峰值功率 600 W
最小反向击穿电压 26.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 4.57 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
重量 0.096 g
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Sensing & Instrumentation, Automotive, Lighting, Consumer Electronics, Communications & Networking, 通用, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ24CA-E3/52 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMBJ24CA/54 威世 | 完全替代 | SMBJ24CA-E3/52和SMBJ24CA/54的区别 |
SMBJ22CA 威世 | 类似代替 | SMBJ24CA-E3/52和SMBJ22CA的区别 |
SMBJ24CA 力特 | 功能相似 | SMBJ24CA-E3/52和SMBJ24CA的区别 |
