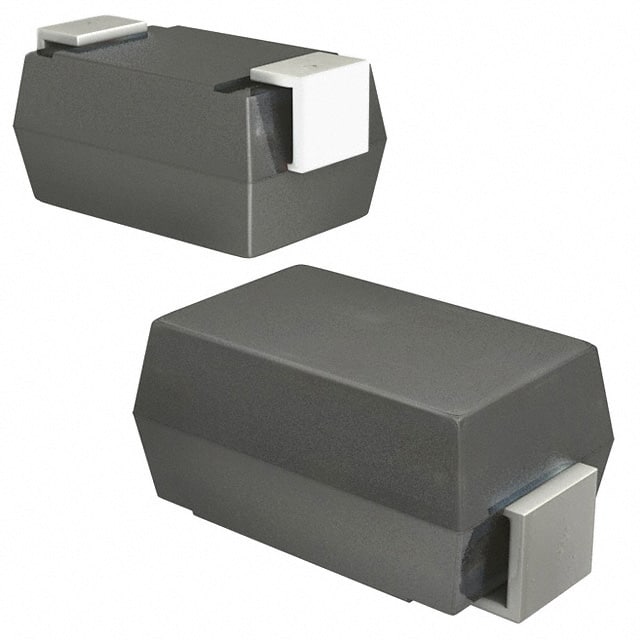

SMAJ51CA-TP

SMA 51V 400W

82.4V 夹子 4.9A Ipp TVS - 二极管 表面贴装型 DO-214AC（SMA）

立创商城:
Vrwm:51V 400W

得捷:
TVS DIODE 51VWM 82.4VC DO214AC

艾睿:
This SMAJ51CA-TP TVS diode developed by Micro Commercial Components can help protect your expensive equipment and electronics. Its peak pulse power dissipation is 400Min W. This device&s;s maximum clamping voltage is 82.4 V and minimum breakdown voltage is 56.7 V. Its maximum leakage current is 1 μA. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Verical:
Diode TVS Single Bi-Dir 51V 400W 2-Pin SMA T/R
