5 行瞬态电压抑制器,用于提供 ESD 保护
5 行瞬态电压抑制器,用于提供 ESD 保护
### 瞬态电压抑制器,On Semiconductor
欧时:

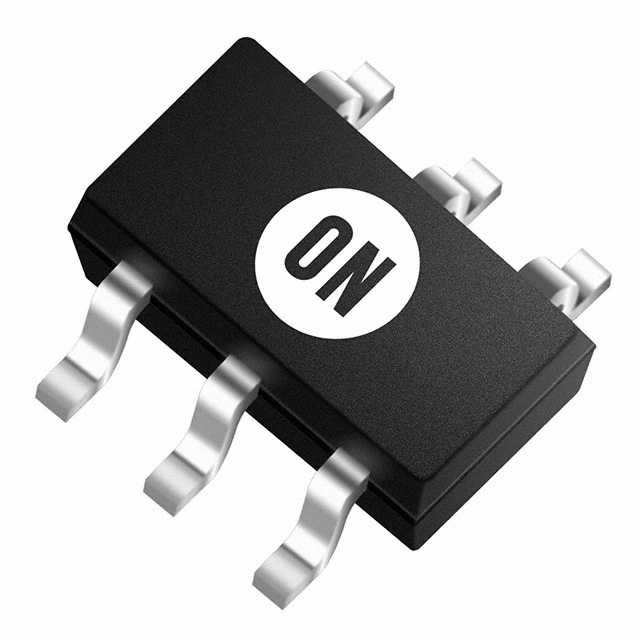

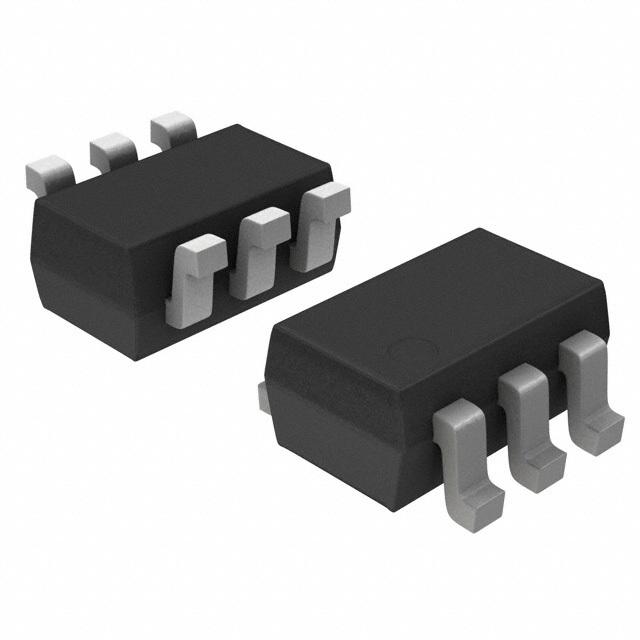

TVS 二极管 ON Semiconductor SMF12CT1G 单向, 100W, 12.5V, 6针 SOT-363 SC-88封装
得捷:
TVS DIODE 12VWM 23VC SC88/SC70-6
立创商城:
SMF12CT1G
e络盟:
静电保护装置, 23 V, SC-88, 6 引脚
艾睿:
This tvs SMF12CT1G ESD protection device from ON Semiconductor, will prevent from a costly fix if your system is to be hit with electrostatic discharge. This device&s;s maximum clamping voltage is 23 V. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/15@Contact Disc/16@HBM/0.4@MM kV. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a quint common anode configuration.
Allied Electronics:
SMF12CT1G, Quint Uni-Directional TVS Diode, 100W, 6-Pin SC-88
安富利:
ESD Suppressor TVS 15KV 6-Pin SC-88 T/R
Chip1Stop:
ESD Suppressor TVS 15kV Automotive 6-Pin SC-88 T/R
Verical:
ESD Suppressor Diode TVS Uni-Dir 12V Automotive 6-Pin SC-88 T/R
力源芯城:
5线TVS
Win Source:
TVS DIODE 12VWM 23VC SC88
额定电压DC 12.0 V
额定功率 100 W
击穿电压 13.3 V
电路数 5
通道数 5
针脚数 6
耗散功率 100 W
钳位电压 23 V
测试电流 1 mA
脉冲峰值功率 100 W
最小反向击穿电压 13.3 V
击穿电压 13.3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.2 mm
宽度 1.25 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMF12CT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SZSMF12CT1G 安森美 | 完全替代 | SMF12CT1G和SZSMF12CT1G的区别 |
SMF12CT1 安森美 | 功能相似 | SMF12CT1G和SMF12CT1的区别 |
SMF12CA-TP 美微科 | 功能相似 | SMF12CT1G和SMF12CA-TP的区别 |
