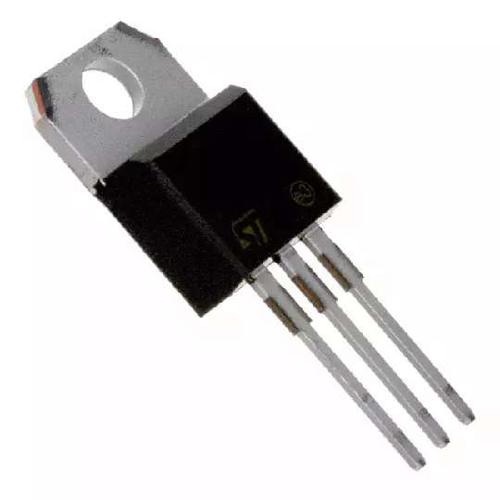

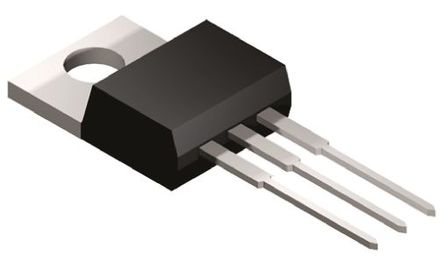

STMICROELECTRONICS STPS1545CT 肖特基整流器, 双共阴极, 45 V, 7.5 A, TO-220AB, 3 引脚, 570 mV
肖特基势垒,2A 至 9A,STMicroelectronics
### 二极管和整流器,STMicroelectronics
欧时:
STMicroelectronics 二极管 STPS1545CT 肖特基, Io=7.5A, Vrev=45V, 3引脚 TO-220AB封装
得捷:
DIODE ARRAY SCHOTTKY 45V TO220AB
立创商城:
功率肖特基整流管
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode STPS1545CT rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its peak non-repetitive surge current is 150 A, while its maximum continuous forward current is 7.5 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a dual common cathode configuration.
安富利:
Diode Schottky 45V 7.5A 3-Pin3+Tab TO-220AB Tube
富昌:
7.5 A 0.84 V 功率 肖特基整流器 法兰安装 - TO-220AB
Verical:
Rectifier Diode Schottky 45V 7.5A 3-Pin3+Tab TO-220AB Tube
儒卓力:
**S-Diode 45V 15A 0.84V TO220-3 **
Win Source:
DIODE ARRAY SCHOTTKY 45V TO220AB
额定电压DC 45.0 V
额定电流 15.0 A
针脚数 3
正向电压 570mV @7.5A
正向电流 7.5 A
最大正向浪涌电流(Ifsm) 150 A
正向电压Max 570 mV
正向电流Max 7.5 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 3

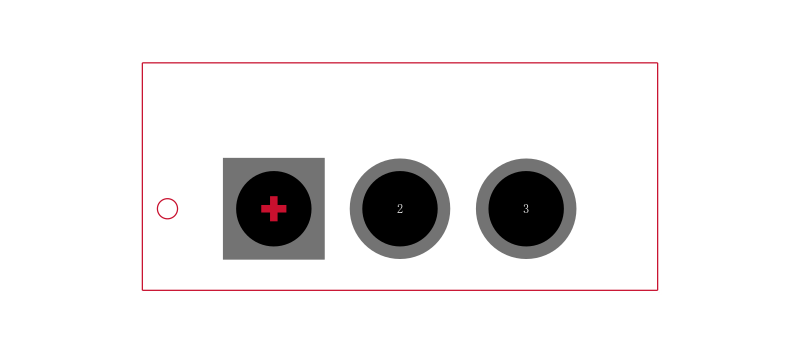

封装 TO-220-3

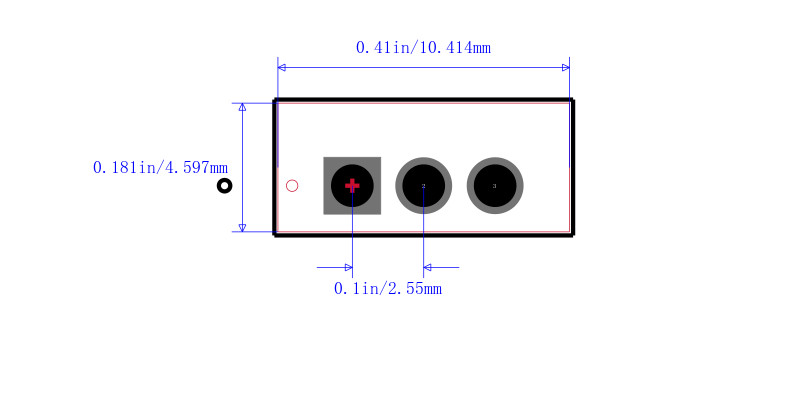

长度 10.4 mm
宽度 4.6 mm
高度 9.15 mm
封装 TO-220-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, 电源管理, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STPS1545CT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS3045CT 意法半导体 | 类似代替 | STPS1545CT和STPS3045CT的区别 |
MBR1545CTG 安森美 | 功能相似 | STPS1545CT和MBR1545CTG的区别 |
SBL1630CT 美台 | 功能相似 | STPS1545CT和SBL1630CT的区别 |
