瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this TVS diode from . Its maximum leakage current is 250 μA. This device"s maximum clamping voltage is 11.2 V and minimum breakdown voltage is 7.22 V. Its peak pulse power dissipation is 200 W. Its test current is 10 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
击穿电压 7.98 V
电路数 1
耗散功率 200 W
钳位电压 11.2 V
测试电流 10 mA
脉冲峰值功率 200 W
最小反向击穿电压 7.22 V
击穿电压 7.22 V
工作温度Max 125 ℃
工作温度Min 40 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

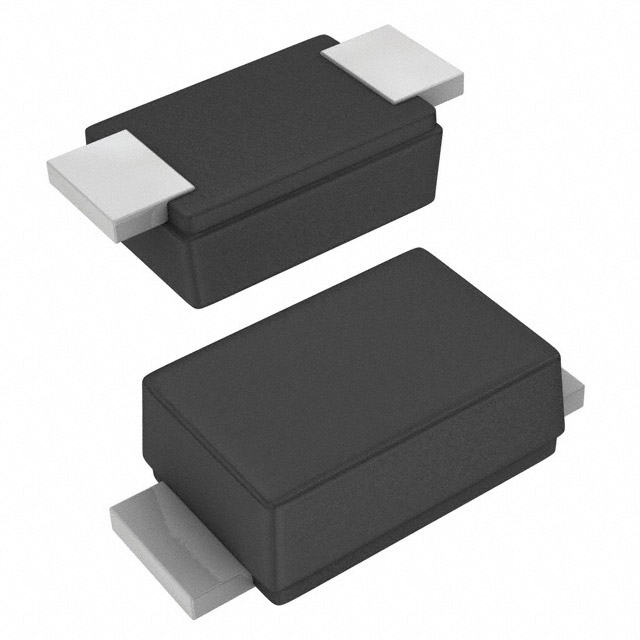

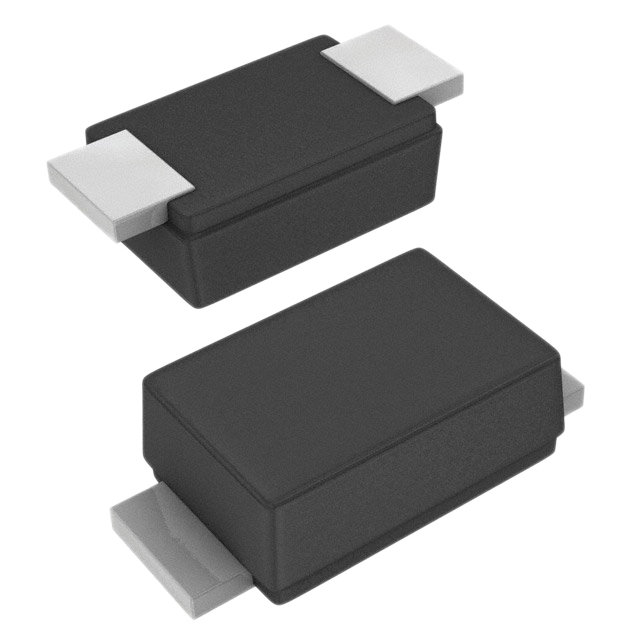

封装 SOD-123F
长度 2.9 mm
宽度 2 mm
高度 1.1 mm
封装 SOD-123F
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMF6.5A Littelfuse 力特 | 当前型号 | 当前型号 |
SMF6.5A-T13 力特 | 类似代替 | SMF6.5A和SMF6.5A-T13的区别 |
SMF6.5AT1G 安森美 | 功能相似 | SMF6.5A和SMF6.5AT1G的区别 |
SMF6.5A-TP 美微科 | 功能相似 | SMF6.5A和SMF6.5A-TP的区别 |
