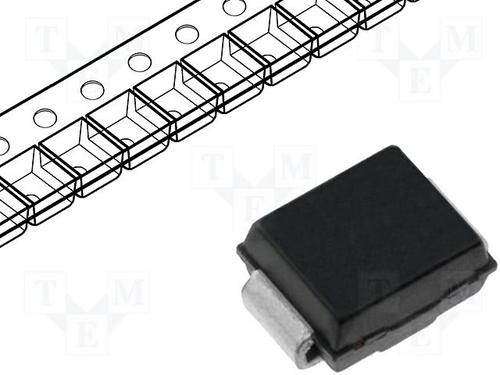

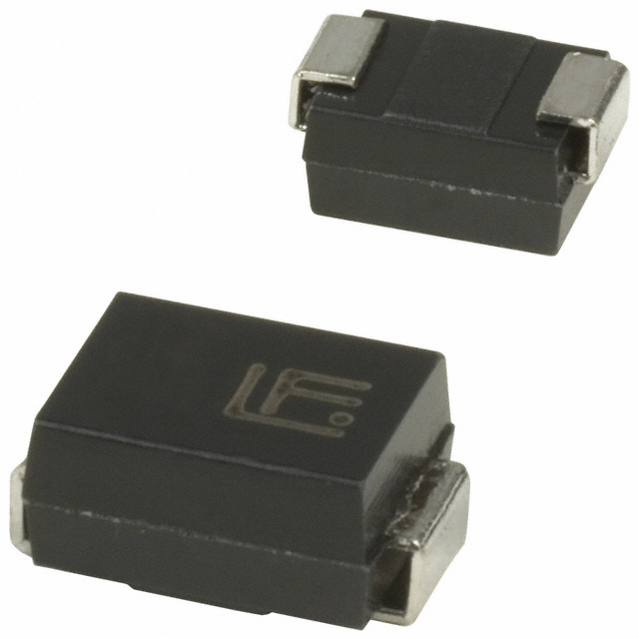

SMBJ 系列 10 V 600 W 表面贴装 双向 TVS 二极管 - DO-214AA
The SMBJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
得捷:
TVS DIODE 9VWM 15.4VC DO214AA
立创商城:
双向 Vrwm:9V 600W
艾睿:
Diode TVS Single Bi-Dir 90V 600W 2-Pin SMB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 9V 600W 2-Pin SMB T/R
TME:
Diode: transil; 600W; 10.55V; 39A; bidirectional; ±5%; DO214AA
Verical:
Diode TVS Single Bi-Dir 9V 600W 2-Pin SMB T/R
Newark:
TVS Diode, SMBJ Series, Bidirectional, 9 V, 15.4 V, DO-214AA, 2 Pins
儒卓力:
**TVS-DIODE BI 0,6KW 10,5V SMB **
Win Source:
TVS DIODE 9VWM 15.4VC SMB
额定电压DC 9.00 V
额定功率 600 W
击穿电压 10.55 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 15.4 V
测试电流 1 mA
最大反向击穿电压 11.1 V
脉冲峰值功率 600 W
最小反向击穿电压 10 V
击穿电压 10 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMBJ9.0CA Littelfuse 力特 | 当前型号 | 当前型号 |
SMBJ9.0CA-HR 力特 | 完全替代 | SMBJ9.0CA和SMBJ9.0CA-HR的区别 |
SMBJ9.0CA-HRA 力特 | 类似代替 | SMBJ9.0CA和SMBJ9.0CA-HRA的区别 |
