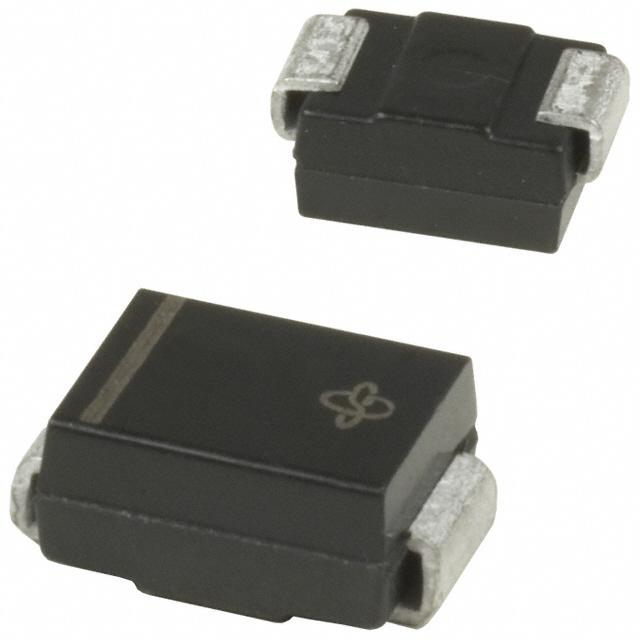

TRANSZORB® 瞬态电压抑制器 SMT 双向 600W，Vishay Semiconductor薄型 DO-214AA SMBJ 封装 极佳的夹持能力 非常快的响应时间 低电阻，带增量浪涌 ### 瞬态电压抑制器，Vishay Semiconductor
The TRANSZORB SMBJ series surface-mount Transient Voltage Suppressor Diode offers 600W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
击穿电压 55.3 V
针脚数 2
钳位电压 72.7 V
测试电流 1 mA
最大反向击穿电压 55.3 V
脉冲峰值功率 600 W
最小反向击穿电压 50 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2

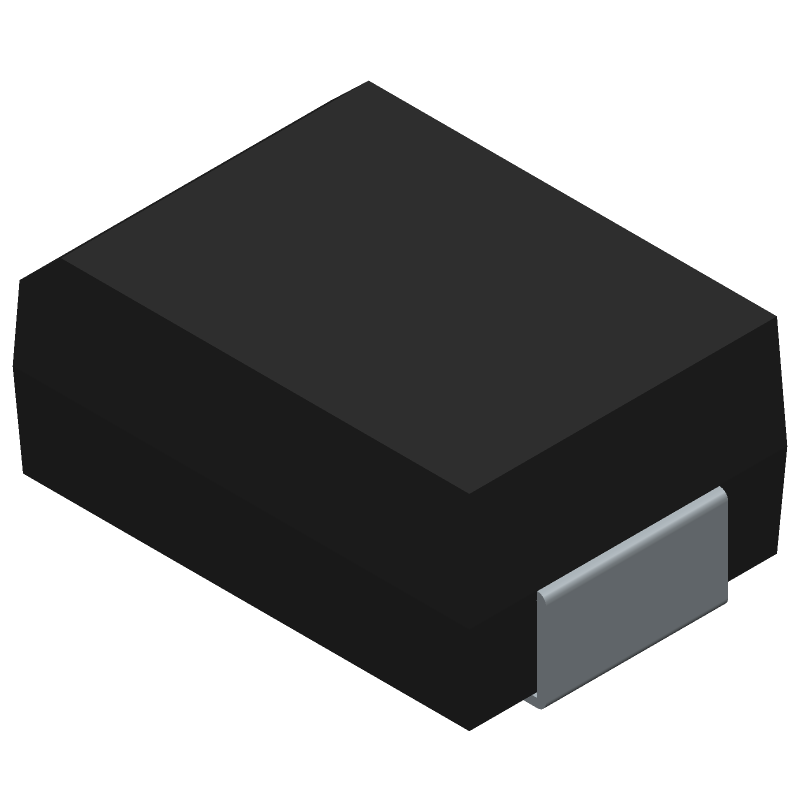

封装 DO-214AA
长度 4.57 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Communications & Networking, Consumer Electronics, Sensing & Instrumentation, Computers & Computer Peripherals, 通用, Industrial, Lighting, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ45CA-E3/52 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMBJ45CA-M3/52 威世 | 完全替代 | SMBJ45CA-E3/52和SMBJ45CA-M3/52的区别 |
SMBJ45CA 威世 | 完全替代 | SMBJ45CA-E3/52和SMBJ45CA的区别 |
SMBJ45CA-M3/5B 威世 | 完全替代 | SMBJ45CA-E3/52和SMBJ45CA-M3/5B的区别 |
