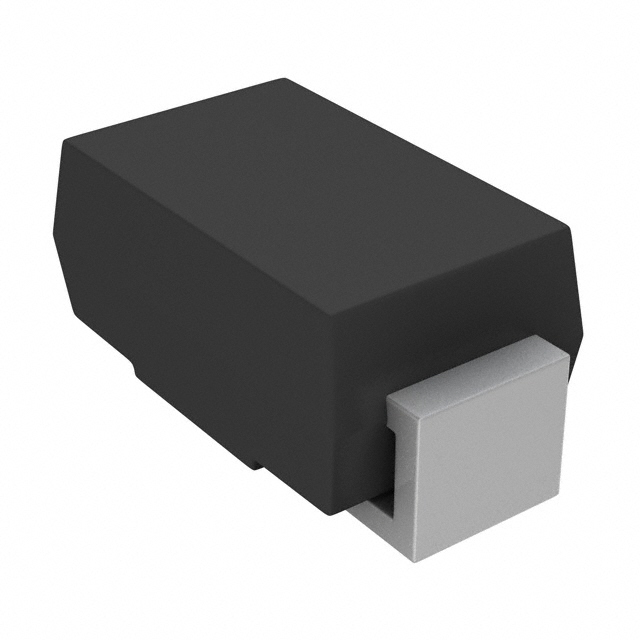

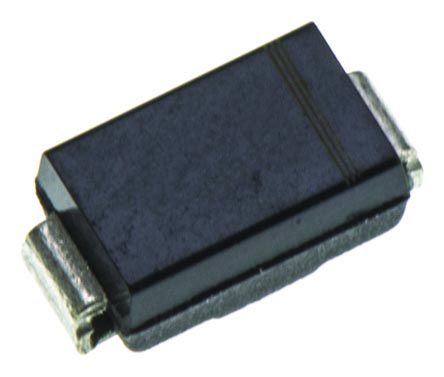

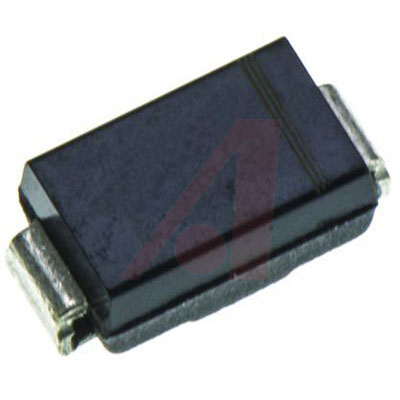

SMAJ188CA-E3/61

Diode TVS Single Bi-Dir 188V 400W 2Pin SMA T/R

**Features:**

* Low Profile Package

* Ideal for Automated Placement

* Glass Passivated Chip Junction

* Available in Uni-Directional and Bi-Directional

* 400 W Peak Pulse Power Capability with a 10/1000 μs Waveform, Repetitive Rate Duty Cycle: 0.01% 300 W Above 78 V

* Excellent Clamping Capability

* Very Fast Response Time

* Low Incremental Surge Resistance

* Meets MSL level 1, Per J-STD-020, LF Maximum Peak of 260°C

* Solder Dip 260°C, 40 s

* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC **Applications:** Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
