SP3022-01ETG 编带

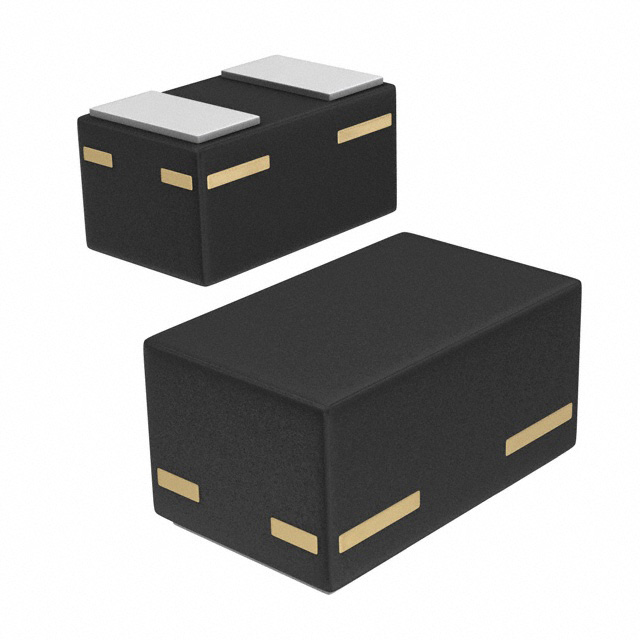

12V 夹子 1A(8/20µs) Ipp TVS - 表面贴装型 SOD-882
立创商城:
SP3022-01ETG
得捷:
TVS DIODE 5.3VWM 12VC SOD882
e络盟:
TVS二极管, SPA SP3022 Series, 双向, 5.3 V, 12 V, SOD-882, 2 引脚
艾睿:
This tvs SP3022-01ETG ESD protection device from Littelfuse, will prevent from a costly fix if your system is to be hit with electrostatic discharge. This device&s;s maximum clamping voltage is 12 V. This ESD diode has a maximum ESD protection device voltage of ±30Min@Air Gap/±20Min@Contact Disc kV. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. Its capacitance value is 0.5 pF.
Chip1Stop:
ESD Suppressor TVS 5.3V Automotive 2-Pin SOD-882 T/R
Verical:
ESD Suppressor Diode TVS Bi-Dir 5.3V Automotive 2-Pin SOD-882 T/R
Newark:
# LITTELFUSE SP3022-01ETG TVS Diode, SPA SP3022 Series, Bidirectional, 5.3 V, 12 V, SOD-882, 2 Pins
儒卓力:
**ESD Protection ARRAY SOD882 **
Win Source:
TVS DIODE 5.3VWM 12VC SOD882
电容 0.5 pF
击穿电压 7.8 V
电路数 1
针脚数 2
钳位电压 12 V
最大反向击穿电压 9 V
脉冲峰值功率 20 W
最小反向击穿电压 6.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
工作结温 150 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-882-2
封装 SOD-882-2
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车,通用, 汽车级,HDMI
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
