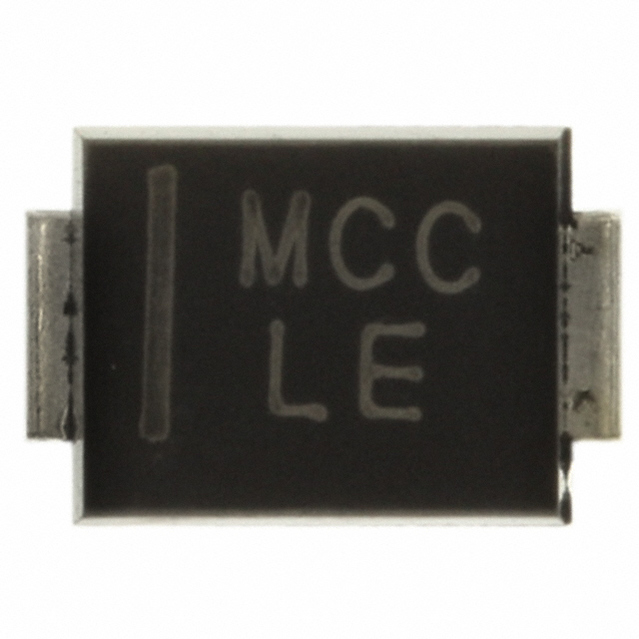

SMBJ120A-TP

单向 120V

Features

• For surface mount applicationsin order to optimize board space

• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

• Fast response time: typical less than 1.0ps from 0 volts to VBR minimum

• Low inductance

• UL Recognized File # E331408

立创商城:
单向 Vrwm:120V 600W

得捷:
TVS DIODE 120VWM 193VC DO214AA

艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Micro Commercial Components&s; SMBJ120A-TP TVS diode. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 193 V and minimum breakdown voltage is 133 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
