ESD 抑制器/TVS 二极管 11V 600 Watts

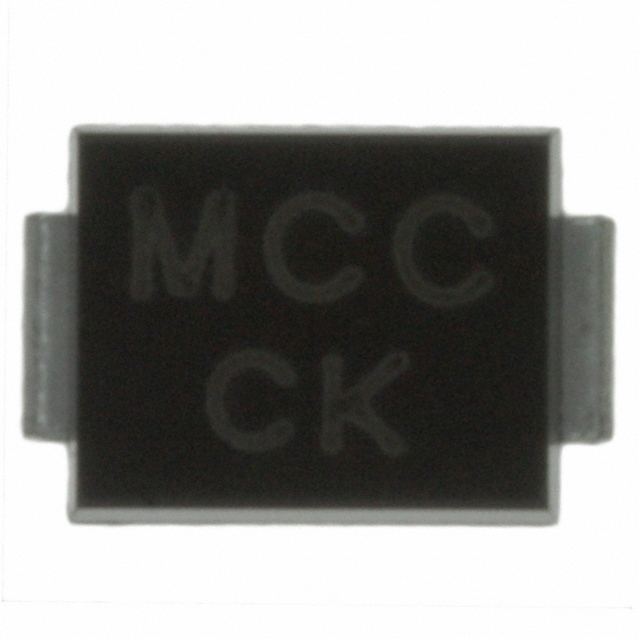

18.2V 夹子 33A Ipp TVS - 表面贴装型 DO-214AA(SMB)
得捷:
TVS DIODE 11VWM 18.2VC DO214AA
立创商城:
双向 Vrwm:11V 600W
贸泽:
ESD 抑制器/TVS 二极管 11V 600 Watts
艾睿:
Implement surge protection with this SMBJ11CA-TP TVS diode from Micro Commercial Components. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 18.2 V and minimum breakdown voltage is 12.2 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
富昌:
SMBJ Series 18.2 V 600 W Bi-Directional Transient Voltage Suppressor Diode - SMB
Chip1Stop:
Diode TVS Single Bi-Dir 11V 600W 2-Pin SMB T/R
额定电压DC 11.0 V
工作电压 11 V
额定功率 600 W
击穿电压 12.2 V
电路数 1
耗散功率 600 W
钳位电压 18.2 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 12.2 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2

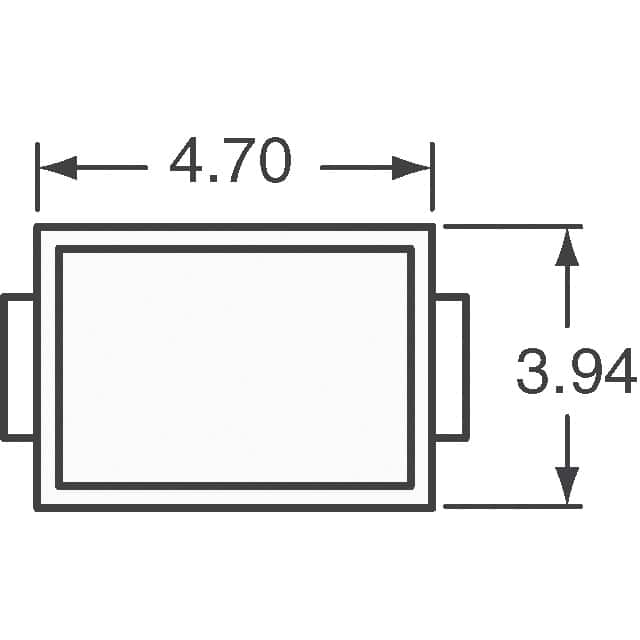

长度 4.7 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMBJ11CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMBJ11CA-E3/52 威世 | 类似代替 | SMBJ11CA-TP和SMBJ11CA-E3/52的区别 |
SMBJ11CA 力特 | 功能相似 | SMBJ11CA-TP和SMBJ11CA的区别 |
SMBJ11CA-13-F 美台 | 功能相似 | SMBJ11CA-TP和SMBJ11CA-13-F的区别 |
