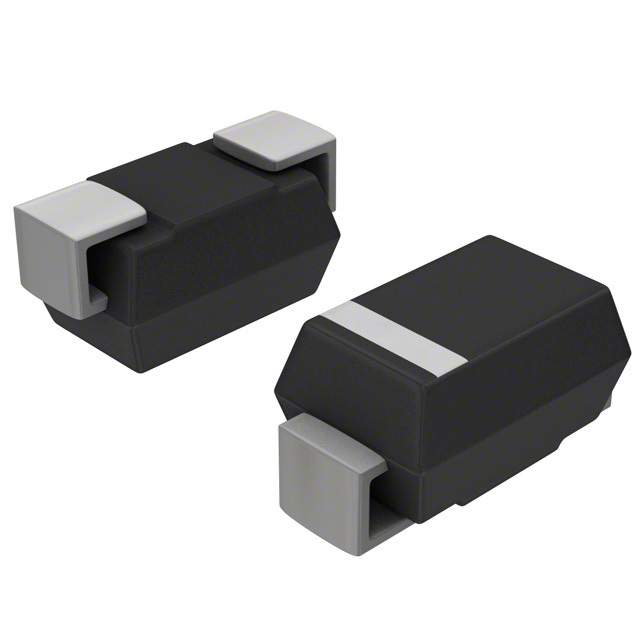

ESD 抑制器/TVS 二极管 150V 600 Watts
Features
• For surface mount applicationsin order to optimize board space
• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
• Fast response time: typical less than 1.0ps from 0 volts to VBR minimum
• Low inductance
• UL Recognized File # E331408
立创商城:
单向 Vrwm:150V
得捷:
TVS DIODE 150VWM 243VC DO214AA
贸泽:
ESD 抑制器/TVS 二极管 150V 600 Watts
艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this SMBJ150A-TP TVS diode from Micro Commercial Components. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 243 V and minimum breakdown voltage is 167 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
额定电压DC 150 V
工作电压 150 V
额定功率 600 W
击穿电压 167 V
钳位电压 243 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 167 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 4.7 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMBJ150A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMBJ150A-13-F 美台 | 类似代替 | SMBJ150A-TP和SMBJ150A-13-F的区别 |
SMBJ150A 光宝 | 类似代替 | SMBJ150A-TP和SMBJ150A的区别 |
