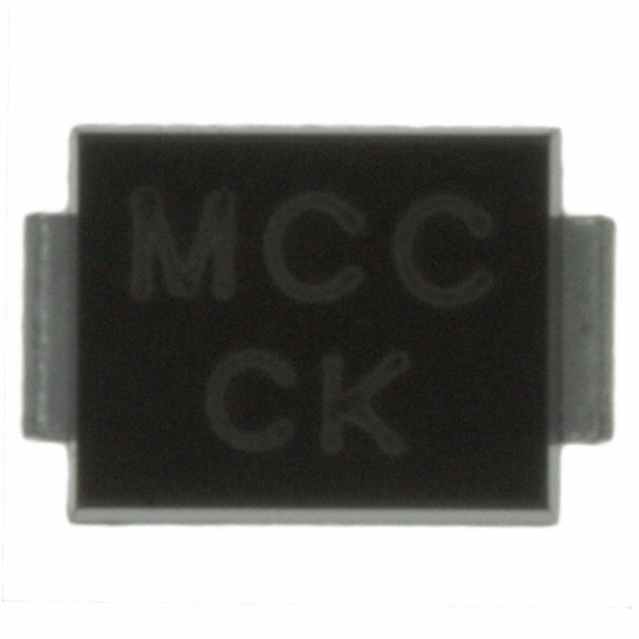

SMBJ60CA-TP

MICRO COMMERCIAL COMPONENTS  SMBJ60CA-TP  二极管, TVS, 96.8V, 双向, DO-214AA

Features

• For surface mount applicationsin order to optimize board space

• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

• Fast response time: typical less than 1.0ps from 0 volts to VBR minimum

• Low inductance

• UL Recognized File # E331408

立创商城:
双向 Vrwm:60V 600W

得捷:
TVS DIODE 60VWM 96.8VC DO214AA

e络盟:
MICRO COMMERCIAL COMPONENTS  SMBJ60CA-TP  二极管, TVS, 96.8V, 双向, DO-214AA

艾睿:
This SMBJ60CA-TP TVS diode from Micro Commercial Components protects against overvoltages. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600 W. This device&s;s maximum clamping voltage is 96.8 V and minimum breakdown voltage is 66.7 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 60V 600W 2-Pin SMB T/R

Newark:
# MICRO COMMERCIAL COMPONENTS  SMBJ60CA-TP  TVS Diode, SMBJ Series, Bidirectional, 60 V, 96.8 V, DO-214AA, 2 Pins
