10A 至 16A,STMicroelectronics### 二极管和整流器,STMicroelectronics
肖特基势垒,10A 至 16A,STMicroelectronics
得捷:
DIODE ARRAY SCHOTTKY 45V D2PAK
立创商城:
45V 10A 840mV@20A
欧时:
STMicroelectronics 二极管 STPS2045CG-TR 肖特基, Io=10A, Vrev=45V, 3引脚 D2PAK TO-263封装
e络盟:
肖特基整流器, 45 V, 20 A, 双共阴极, TO-262, 3 引脚, 840 mV
艾睿:
Converting from AC to DC is simple when using a Schottky diode STPS2045CG-TR rectifier from STMicroelectronics. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 180 A, while its maximum continuous forward current is 20 A. It is made in a dual common cathode configuration. This rectifier has an operating temperature range of -65 °C to 175 °C.
安富利:
Diode Schottky 45V 20A 3-Pin2+Tab D2PAK T/R
Chip1Stop:
Diode Schottky 45V 20A 3-Pin2+Tab D2PAK T/R
儒卓力:
**S-Diode 45V 20A 0.57V TO263-3 **
Win Source:
DIODE ARRAY SCHOTTKY 45V D2PAK
额定电压DC 45.0 V
额定电流 20.0 A
针脚数 3
正向电压 570mV @10A
正向电流 20 A
最大正向浪涌电流(Ifsm) 180 A
正向电压Max 570mV @10A
正向电流Max 10 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Surface Mount
引脚数 3

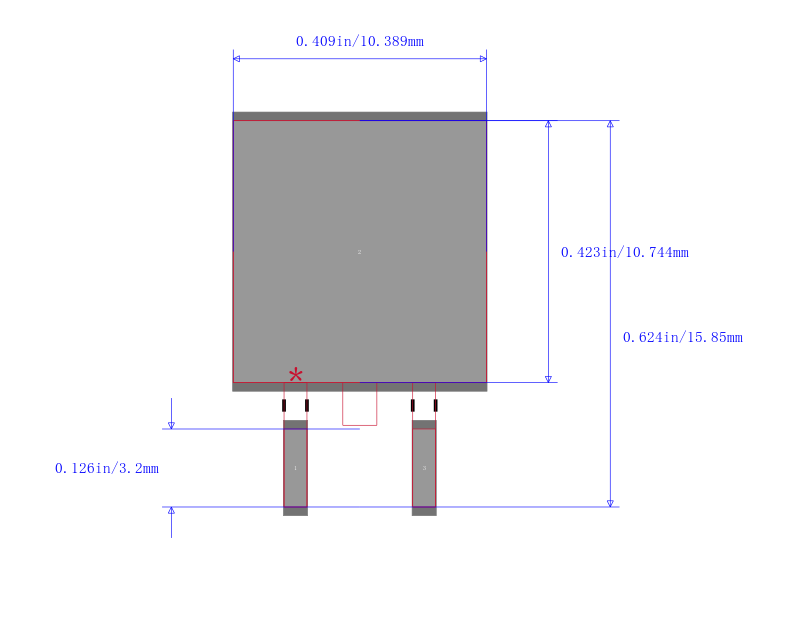

封装 TO-263-3
长度 10.4 mm
宽度 9.35 mm
高度 4.6 mm
封装 TO-263-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STPS2045CG-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS2045CG 意法半导体 | 类似代替 | STPS2045CG-TR和STPS2045CG的区别 |
