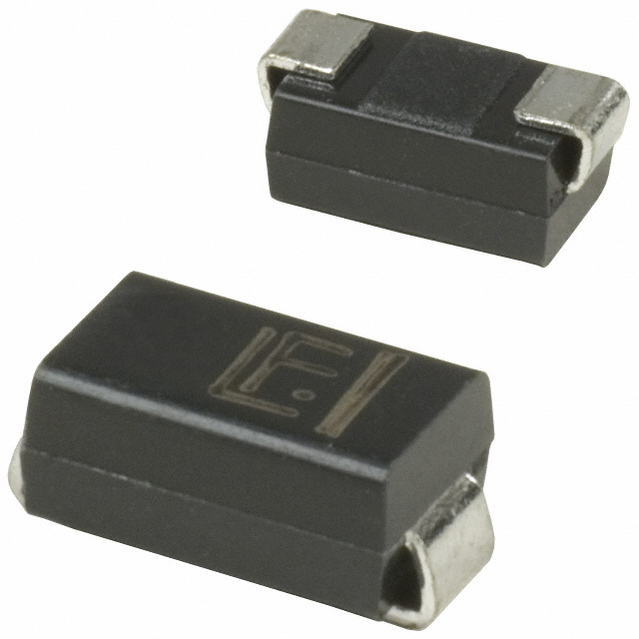

Diode TVS Single Uni-Dir 33V 400W 2Pin SMAJ T/R
55.97V 夹子 7.5A Ipp TVS - 表面贴装型 DO-214AC（SMA）
得捷:
TVS DIODE 33V 55.97V DO214AC
艾睿:
Do not risk expensive equipment and machinery from surges with this SMAJ33 TVS diode from Littelfuse. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 53.3 V and minimum breakdown voltage is 34.785 V. Its test current is 1 mA. Its peak pulse power dissipation is 400 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
Chip1Stop:
Diode TVS Single Uni-Dir 33V 400W 2-Pin DO-214-AC T/R
额定电压DC 33.0 V
工作电压 33 V
额定功率 400 W
击穿电压 36.7 V
电路数 1
钳位电压 53.3 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 34.79 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 5.28 mm
宽度 2.79 mm
高度 2.29 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMAJ33 Littelfuse 力特 | 当前型号 | 当前型号 |
SMAJ33A 力特 | 类似代替 | SMAJ33和SMAJ33A的区别 |
SMAJ33A-13-F 美台 | 功能相似 | SMAJ33和SMAJ33A-13-F的区别 |
