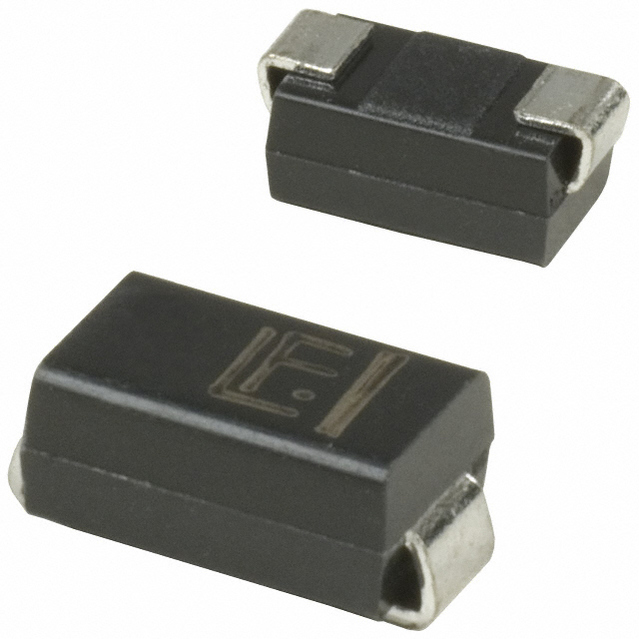

Diode TVS Single Uni-Dir 36V 400W 2Pin SMA T/R
61.01V 夹子 6.9A Ipp TVS - 表面贴装型 DO-214AC（SMA）
得捷:
TVS DIODE 36VWM 61.01VC DO214AC
贸泽:
ESD Suppressors / TVS Diodes 36Vr 400W 6.9A 10% UniDirectional
艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this SMAJ36 TVS diode from Littelfuse. Its peak pulse power dissipation is 400 W. This device&s;s maximum clamping voltage is 58.1 V and minimum breakdown voltage is 37.89 V. Its test current is 1 mA. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 36V 400W 2-Pin DO-214-AC T/R
Verical:
TVS Diode Single Uni-Dir 36V 400W 2-Pin SMA T/R
额定电压DC 36.0 V
额定功率 400 W
击穿电压 40 V
电路数 1
耗散功率 400 W
钳位电压 58.1 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 37.89 V
击穿电压 37.89 V
工作温度Max 150 ℃
工作温度Min 65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC

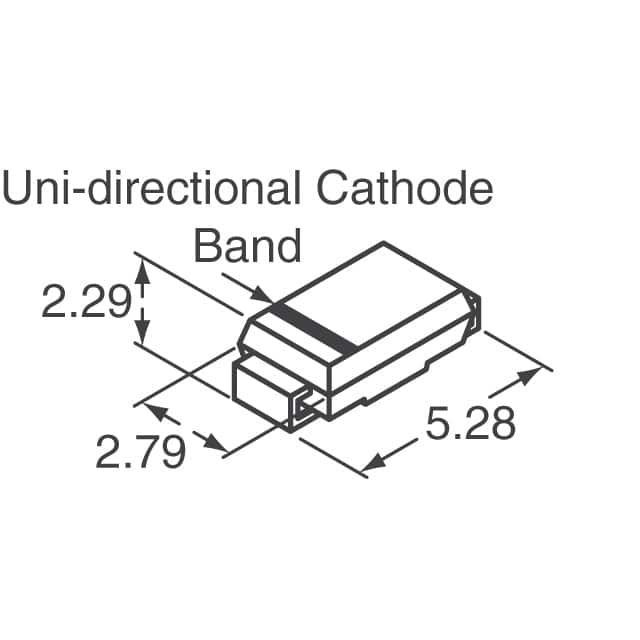

长度 5.28 mm
宽度 2.79 mm
高度 2.29 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMAJ36 Littelfuse 力特 | 当前型号 | 当前型号 |
SMAJ36A 力特 | 类似代替 | SMAJ36和SMAJ36A的区别 |
SMAJ36A-13-F 美台 | 功能相似 | SMAJ36和SMAJ36A-13-F的区别 |
