硅雪崩二极管 - 600W表面贴装瞬态电压抑制器 Silicon Avalanche Diodes - 600W Surface Mount Transient Voltage Suppressors
25.62V Clamp 24.6A Ipp Tvs Diode Surface Mount DO-214AA SMBJ
得捷:
TVS DIODE 15VWM 25.62VC DO214AA
艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this SMBJ15 TVS diode from Littelfuse. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 25.62 V and minimum breakdown voltage is 15.84 V. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
额定电压DC 15.0 V
额定功率 600 W
击穿电压 16.7 V
钳位电压 24.4 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 15.84 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

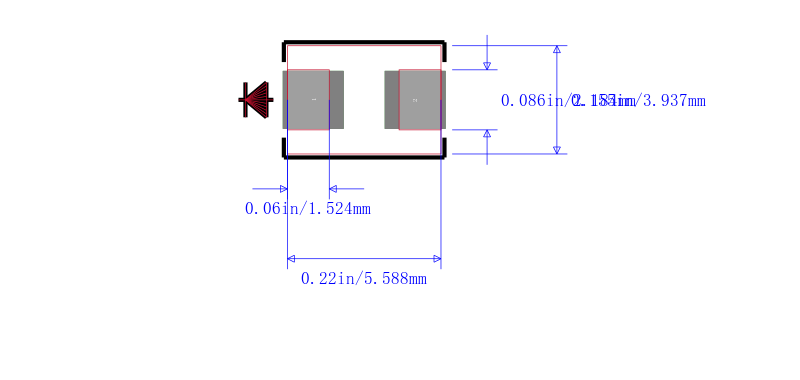

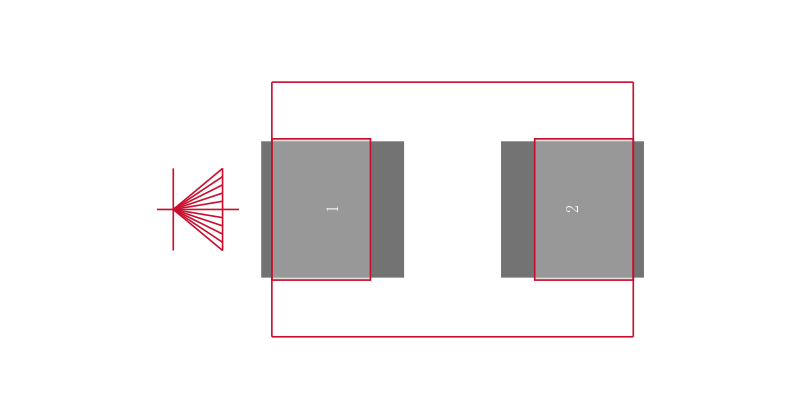

封装 DO-214AA
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ15 Littelfuse 力特 | 当前型号 | 当前型号 |
SMBJ15A 力特 | 类似代替 | SMBJ15和SMBJ15A的区别 |
SMBJ15CA 力特 | 类似代替 | SMBJ15和SMBJ15CA的区别 |
P6SMBJ15 力特 | 类似代替 | SMBJ15和P6SMBJ15的区别 |
