300V超快整流器 300V HYPERFAST RECTIFIER

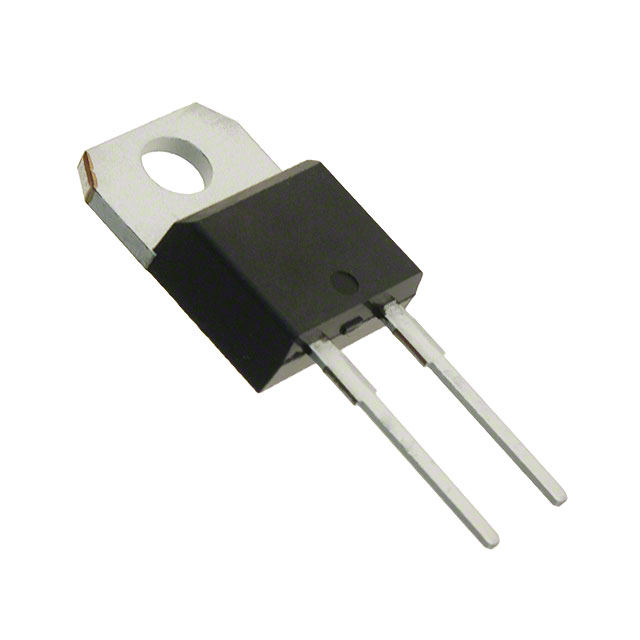

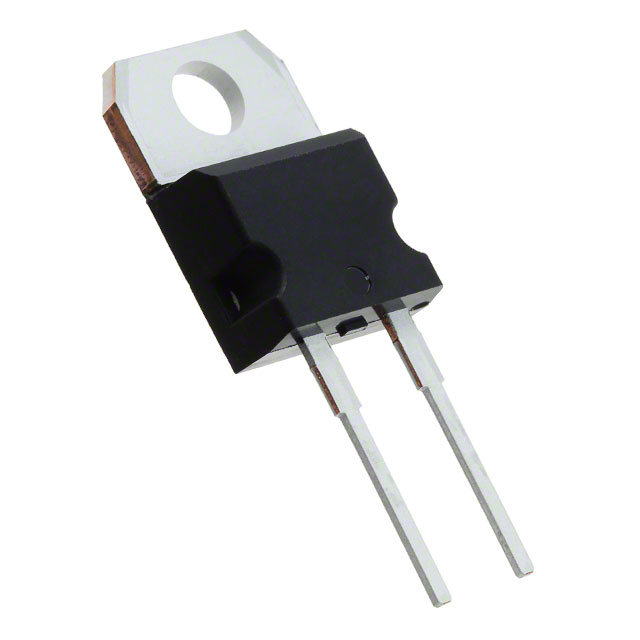

标准 300 V 8A 通孔 TO-220AC
得捷:
DIODE GEN PURP 300V 8A TO220AC
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode STTH8R03D rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration. Its peak non-repetitive surge current is 80 A, while its maximum continuous forward current is 8 A.
安富利:
Diode Switching 300V 8A 2-Pin2+Tab TO-220AC Tube
Chip1Stop:
Diode Switching 300V 8A 2-Pin2+Tab TO-220AC Tube
Verical:
Rectifier Diode Switching 300V 8A 30ns 2-Pin2+Tab TO-220AC Tube
额定电压DC 300 V
额定电流 8.00 A
输出电流 ≤8.00 A
正向电压 1.8V @8A
极性 Standard
反向恢复时间 30 ns
正向电流 8000 mA
正向电压Max 1.8V @8A
正向电流Max 8000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 2
封装 TO-220-2
封装 TO-220-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH8R03D ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
8ETH03PBF 威世 | 功能相似 | STTH8R03D和8ETH03PBF的区别 |
