ESD 抑制器/TVS 二极管 12V 600 Watts

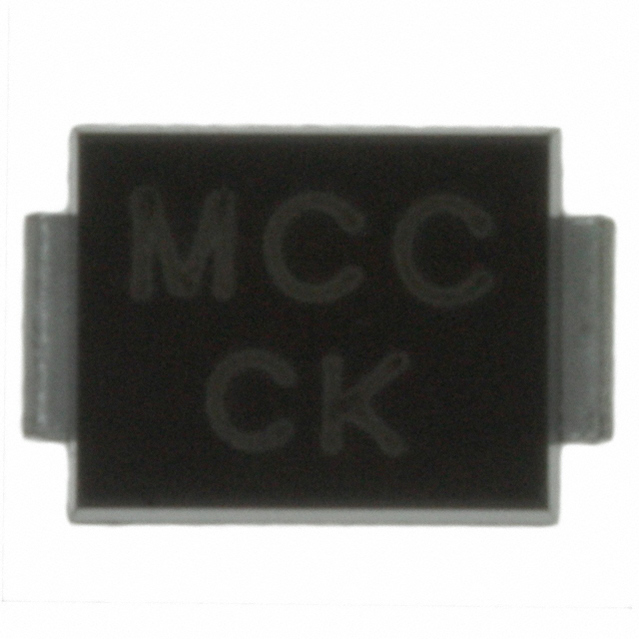

19.9V 夹子 30.2A Ipp TVS - 表面贴装型 DO-214AA（SMB）
得捷:
TVS DIODE 12VWM 19.9VC DO214AA
立创商城:
双向 Vrwm:12V 600W
贸泽:
ESD 抑制器/TVS 二极管 12V 600 Watts
艾睿:
If you&s;re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this SMBJ12CA-TP TVS diode from Micro Commercial Components is perfect for you. Its maximum leakage current is 5 μA. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This device&s;s maximum clamping voltage is 19.9 V and minimum breakdown voltage is 13.3 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
Verical:
Diode TVS Single Bi-Dir 12V 600W 2-Pin SMB T/R
Online Components:
Diode TVS Single Bi-Dir 12V 600W 2-Pin DO-214AA T/R
Win Source:
TVS DIODE 12VWM 19.9VC SMB
额定电压DC 12.0 V
工作电压 12 V
额定功率 600 W
击穿电压 13.3 V
钳位电压 19.9 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 13.3 V
击穿电压 13.3 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 4.70 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ12CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMBJ12CA-13 美台 | 类似代替 | SMBJ12CA-TP和SMBJ12CA-13的区别 |
SMBJ12CA 力特 | 功能相似 | SMBJ12CA-TP和SMBJ12CA的区别 |
1SMB12CAT3G 安森美 | 功能相似 | SMBJ12CA-TP和1SMB12CAT3G的区别 |
