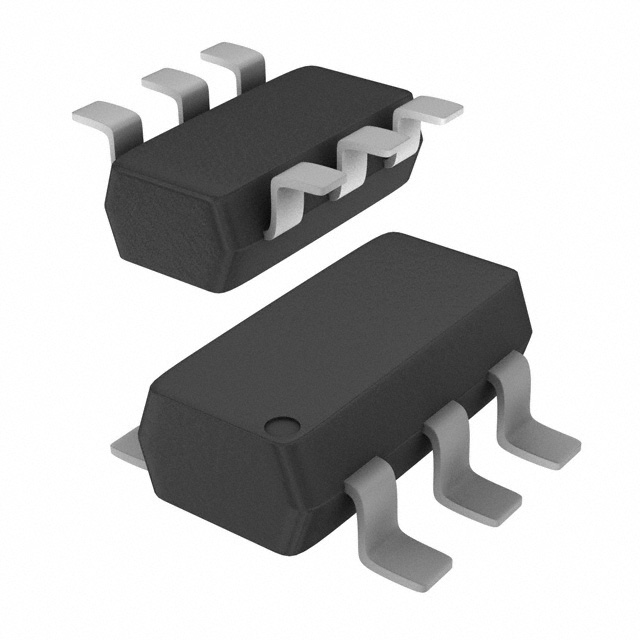

稳压二极管 MI SC74 TVS QUAD 33V TR
This tvs ESD protection device from is ideal for protecting your electronic components and circuits from electrostatic discharge. This ESD diode has a maximum ESD protection device voltage of 16@HBM kV. This device"s maximum clamping voltage is 48.6 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a quad common anode configuration.
无卤素状态 Halogen Free
耗散功率 0.3 W
钳位电压 48.6 V
测试电流 1 mA
脉冲峰值功率 150 W
最小反向击穿电压 31.4 V
击穿电压 31.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 6
封装 SC-74
高度 0.94 mm
封装 SC-74
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SZMMQA33VT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMQA33VT1G 安森美 | 功能相似 | SZMMQA33VT1G和MMQA33VT1G的区别 |
