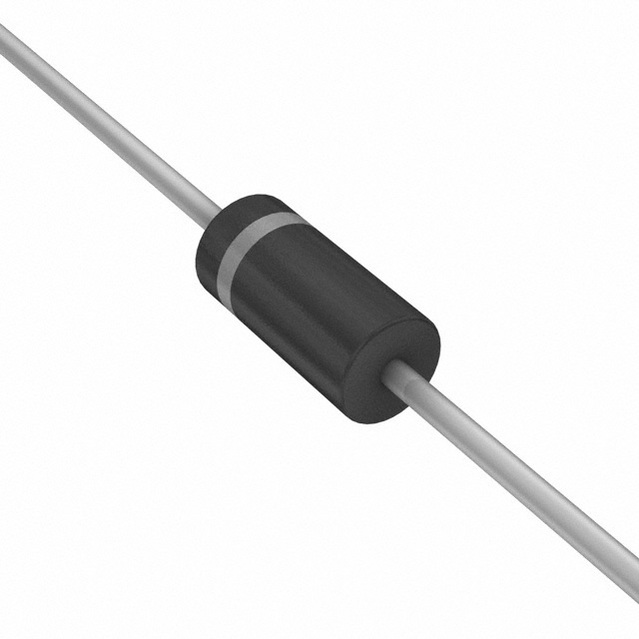

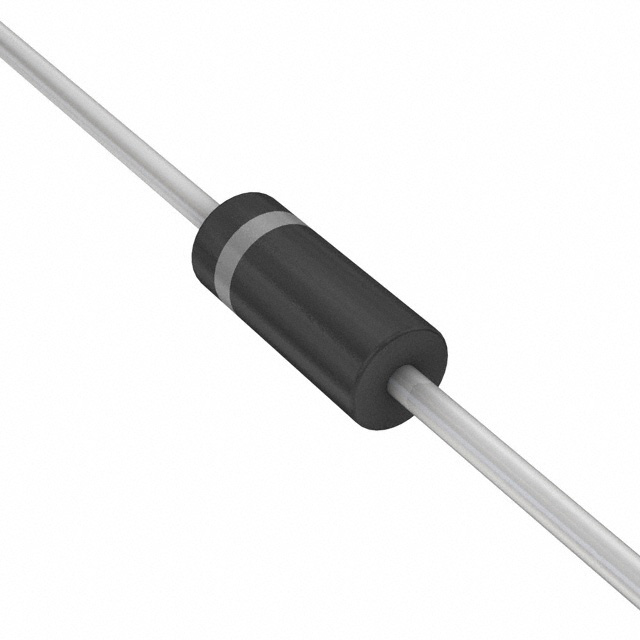

ON SEMICONDUCTOR SA5.0AG TVS二极管, TVS, MiniMOSORB SA系列, 单向, 5 V, 9.2 V, 轴向引线, 2 引脚
The MiniMOSORB SA series unidirectional Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.
- .
- 5 to 170V Working peak reverse voltage range
- .
- 500W @ 1ms Peak power
- .
- ESD rating of Class 3 >16kV per human body model
- .
- Maximum clamp voltage @ peak pulse current
- .
- <1µA above 8.5V Low leakage current
- .
- Maximum temperature coefficient specified
- .
- <1ns Response time
- .
- -55 to 175°C Operating temperature range
额定电压DC 5.00 V
工作电压 5 V
额定功率 500 W
击穿电压 6.4 V
电路数 1
针脚数 2
耗散功率 500 W
钳位电压 9.2 V
最大反向电压（Vrrm） 5V
测试电流 10 mA
最大反向击穿电压 7 V
脉冲峰值功率 500 W
最小反向击穿电压 6.4 V
击穿电压 6.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Through Hole
引脚数 2
封装 DO-204AC
长度 7.6 mm
直径 3.60 mm
封装 DO-204AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 Computers & Computer Peripherals, Power Management, Industrial, 通用, Consumer Electronics, Medical, Automation & Process Control, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SA5.0AG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SA6.0AG 安森美 | 类似代替 | SA5.0AG和SA6.0AG的区别 |
SA6.0ARLG 安森美 | 类似代替 | SA5.0AG和SA6.0ARLG的区别 |
SA5.0A 力特 | 功能相似 | SA5.0AG和SA5.0A的区别 |
