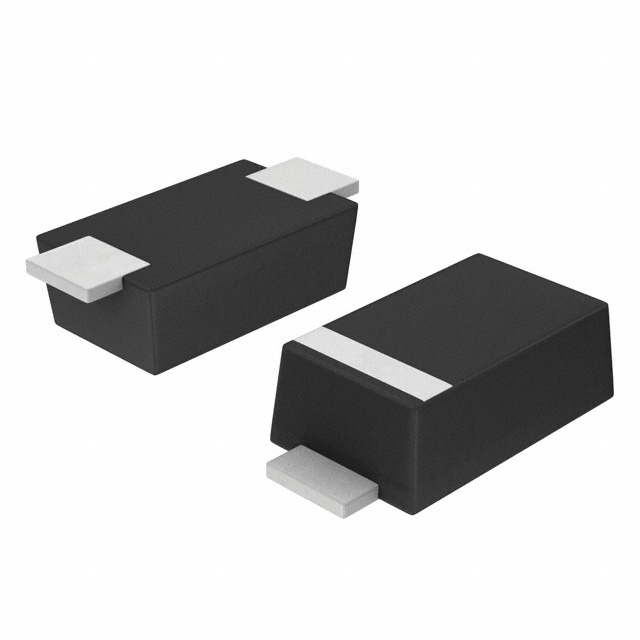

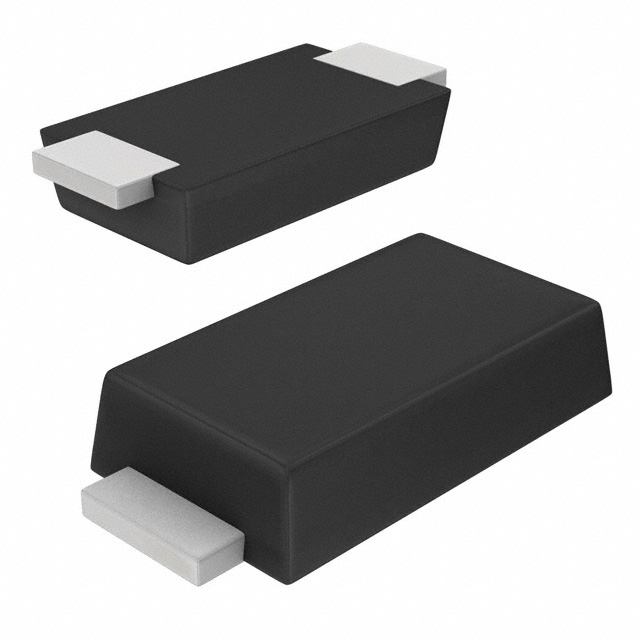

SMA6F13A-TP

单向 13V

20.4V Clamp 29A Ipp Tvs Diode Surface Mount DO-221AC SMA-FL

得捷:
TVS DIODE 13VWM 20.4VC DO221AC

立创商城:
单向 Vrwm:13V 600W

艾睿:
Save yourself hassle by equipping your device with Micro Commercial Components&s; SMA6F13A-TP TVS diode which will react to sudden or momentary overvoltage conditions. Its test current is 1 mA. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600Min W. This device&s;s maximum clamping voltage is 20.4 V and minimum breakdown voltage is 14.4 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Uni-Dir 13V 600W 2-Pin DO-221AC T/R
