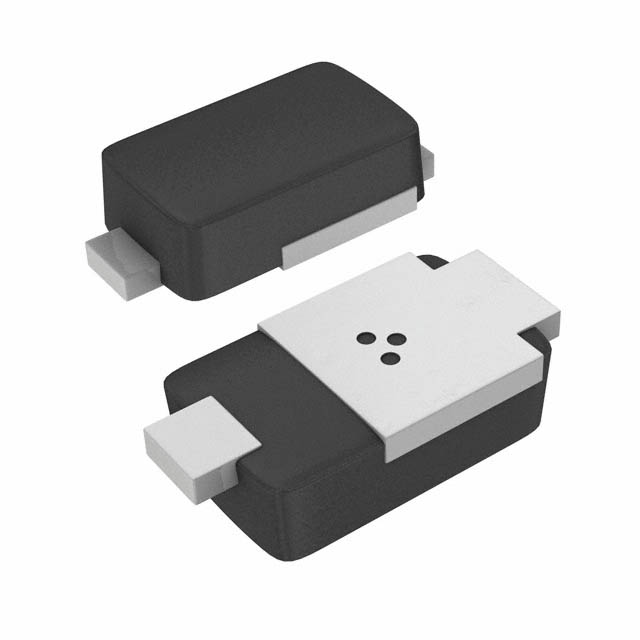

SMM4F系列 400 W 30 V 单向 瞬态电压抑制器 - DO-222AA
53.5V 夹子 43A（8/20µs） Ipp TVS - 表面贴装型 DO222-AA
得捷:
TVS DIODE 26VWM 53.5VC DO222-AA
贸泽:
ESD 抑制器/TVS 二极管 Hi Temp Transil Diode
艾睿:
Take the extra step in your circuitry by implementing surge protection with this SMM4F26A-TR TVS diode from STMicroelectronics. This device&s;s maximum clamping voltage is 53.5 V and minimum breakdown voltage is 28.5 V. Its peak pulse power dissipation is 400 W. Its maximum leakage current is 0.2 μA. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
安富利:
Diode TVS Single Uni-Dir 26V 400W 2-Pin1+Tab DO-222AA T/R
Chip1Stop:
Diode TVS Single Uni-Dir 26V 400W 2-Pin1+Tab DO-222AA T/R
Verical:
Diode TVS Single Uni-Dir 26V 400W 2-Pin1+Tab DO-222AA T/R
工作电压 26 V
额定功率 400 W
击穿电压 28.5 V
电路数 1
耗散功率 400 W
钳位电压 53.5 V
最大反向电压（Vrrm） 26V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 28.5 V
击穿电压 28.5 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-222AA
长度 2.95 mm
宽度 1.9 mm
高度 0.85 mm
封装 DO-222AA
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
