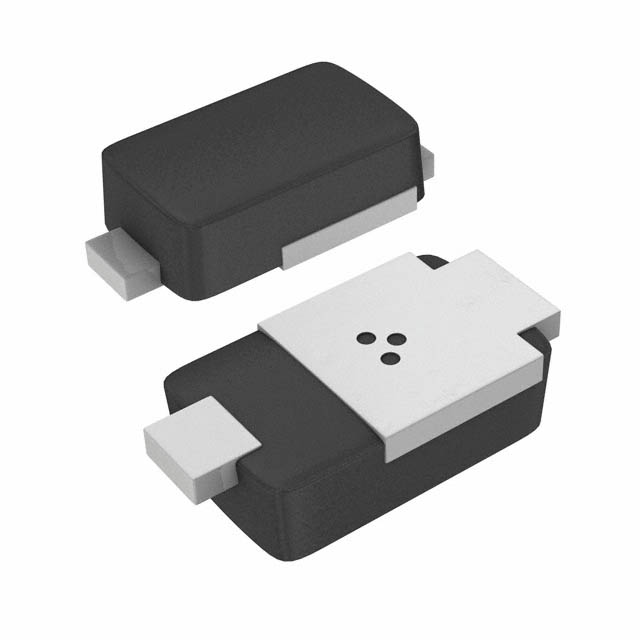

SMM4F系列 400 W 15 V 单向 瞬态电压抑制器 - DO-222AA
27.2V 夹子 85A（8/20µs） Ipp TVS - 表面贴装型 DO222-AA
得捷:
TVS DIODE 13VWM 27.2VC DO222-AA
立创商城:
单向 Vrwm:13V 400W
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMM4F13A-TR TVS diode from STMicroelectronics. This device&s;s maximum clamping voltage is 27.2 V and minimum breakdown voltage is 14.3 V. Its test current is 1 mA. Its peak pulse power dissipation is 400 W. Its maximum leakage current is 0.2 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
安富利:
Diode TVS Single Uni-Dir 13V 400W 2-Pin1+Tab DO-222AA T/R
Chip1Stop:
Diode TVS Single Uni-Dir 13V 400W 2-Pin1+Tab DO-222AA T/R
额定功率 400 W
击穿电压 14.3 V
电路数 1
耗散功率 400 W
钳位电压 27.2 V
最大反向电压（Vrrm） 13V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 14.3 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-222AA
长度 2.95 mm
宽度 1.9 mm
高度 0.85 mm
封装 DO-222AA
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
