功率肖特基整流器 POWER SCHOTTKY RECTIFIER

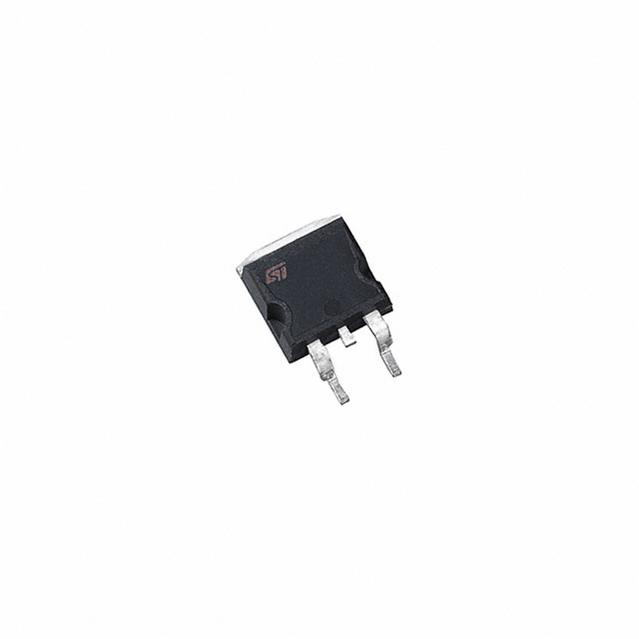

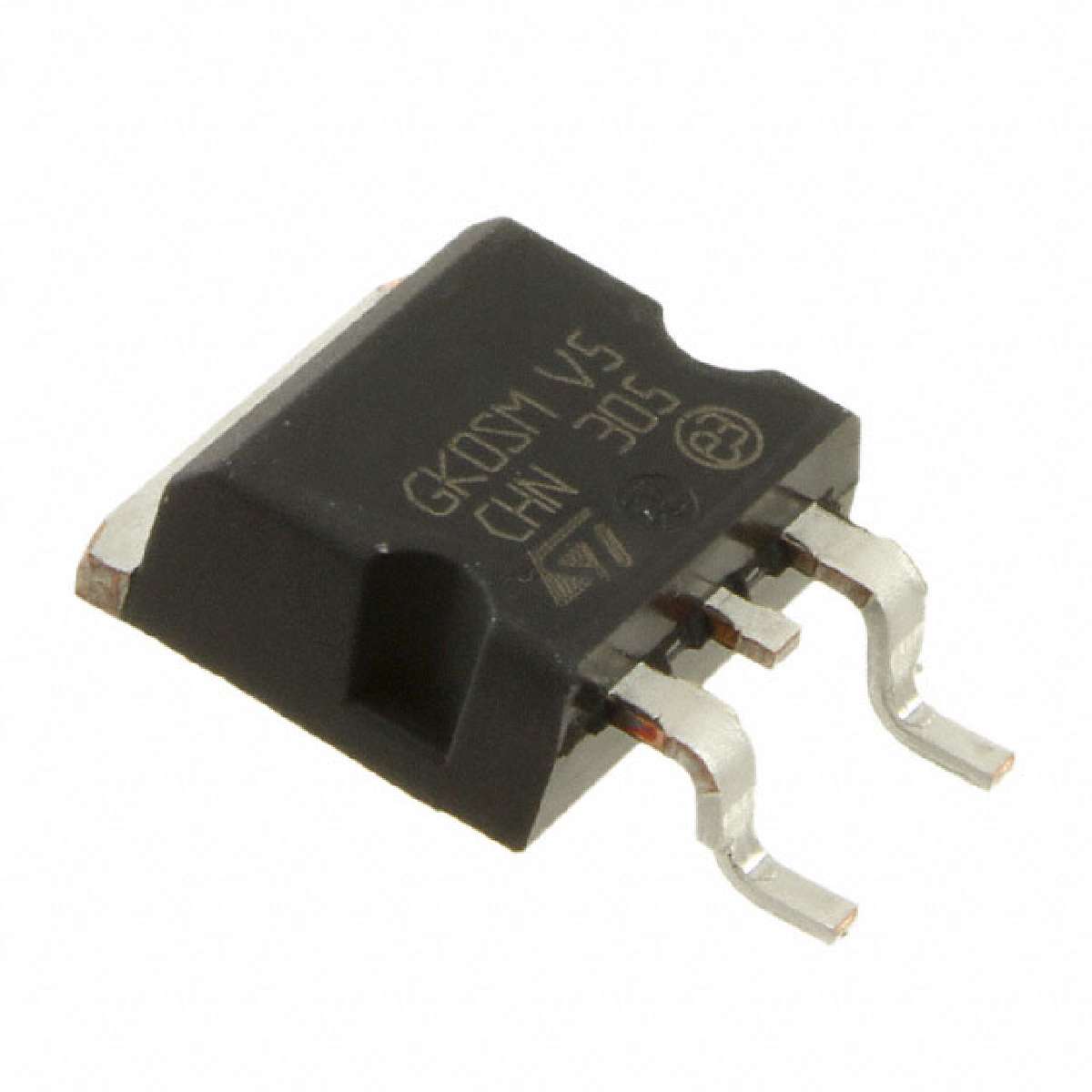

Diode Schottky 45V 15A Surface Mount D2PAK
得捷:
DIODE SCHOTTKY 45V 15A D2PAK
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode STPS1545G rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its peak non-repetitive surge current is 220 A, while its maximum continuous forward current is 15 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C.
安富利:
Diode Schottky 45V 15A 3-Pin2+Tab D2PAK Tube
Chip1Stop:
Diode Schottky 45V 15A 3-Pin2+Tab D2PAK Tube
额定电压DC 45.0 V
额定电流 15.0 A
输出电流 ≤15.0 A
正向电压 840mV @30A
极性 Standard
最大正向浪涌电流（Ifsm） 220 A
正向电压Max 840mV @30A
正向电流Max 15 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Surface Mount
引脚数 3

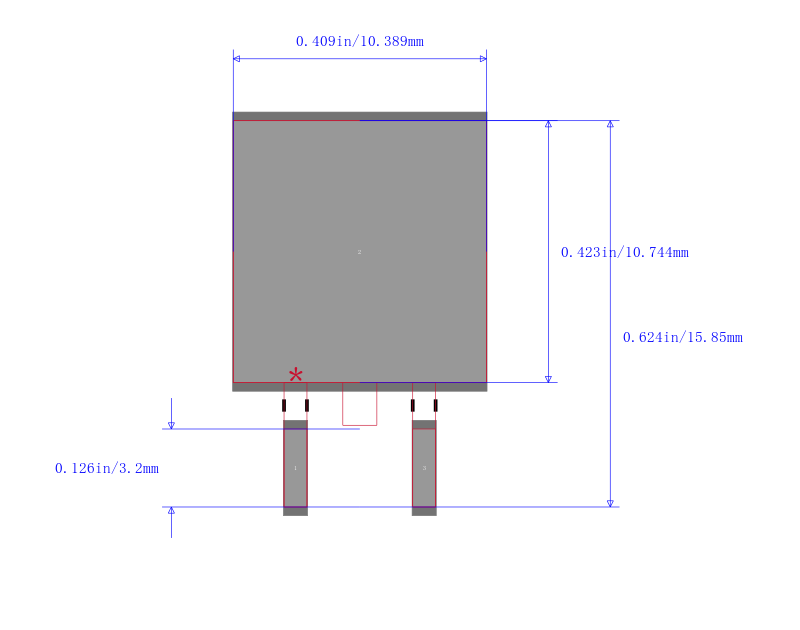

封装 TO-263-3
封装 TO-263-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STPS1545G ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS1545G-TR 意法半导体 | 完全替代 | STPS1545G和STPS1545G-TR的区别 |
