瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Protect your critical electronic applications from sudden overvoltage conditions with this TVS diode from . This device"s maximum clamping voltage is 103 V and minimum breakdown voltage is 71.1 V. Its peak pulse power dissipation is 400 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
额定电压DC 64.0 V
额定功率 400 W
击穿电压 74.85 V
电路数 1
耗散功率 400 W
钳位电压 103 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 71.1 V
击穿电压 71.1 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

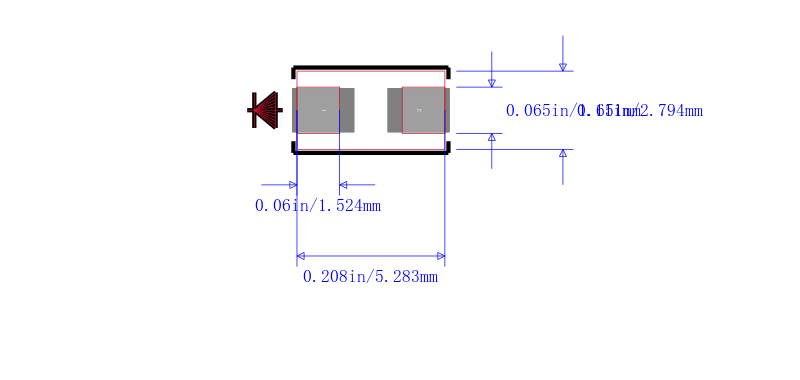

封装 DO-214AC
长度 5.28 mm
宽度 2.79 mm
高度 2.29 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active

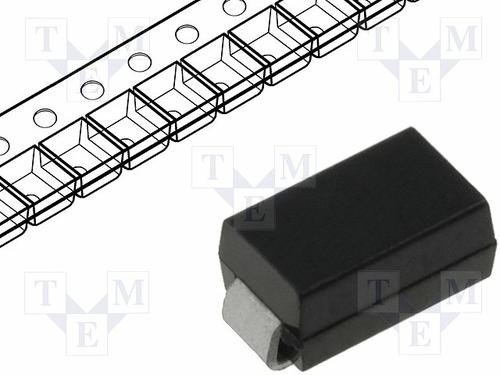

包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
