硅雪崩二极管 - 600W表面贴装瞬态电压抑制器 Silicon Avalanche Diodes - 600W Surface Mount Transient Voltage Supressors
Do not risk expensive equipment and machinery from surges with this TVS diode from . This device"s maximum clamping voltage is 405 V and minimum breakdown voltage is 279 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
击穿电压 294 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 405 V
测试电流 1 mA
最大反向击穿电压 309 V
脉冲峰值功率 600 W
最小反向击穿电压 279 V
击穿电压 279 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2

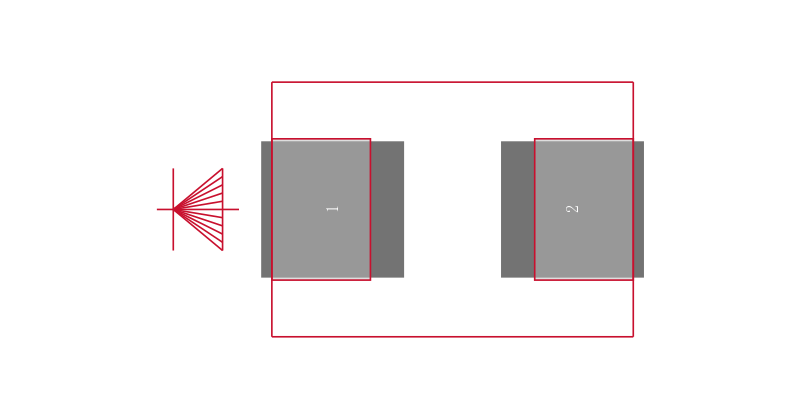

封装 DO-214AC-2
长度 4.57 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ250CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMB300CA 力特 | 功能相似 | SMBJ250CA和P6SMB300CA的区别 |
