SZSMF24AT1G

200W 瞬态电压抑制器 SOD-123 扁平引线封装### 瞬态电压抑制器，On Semiconductor

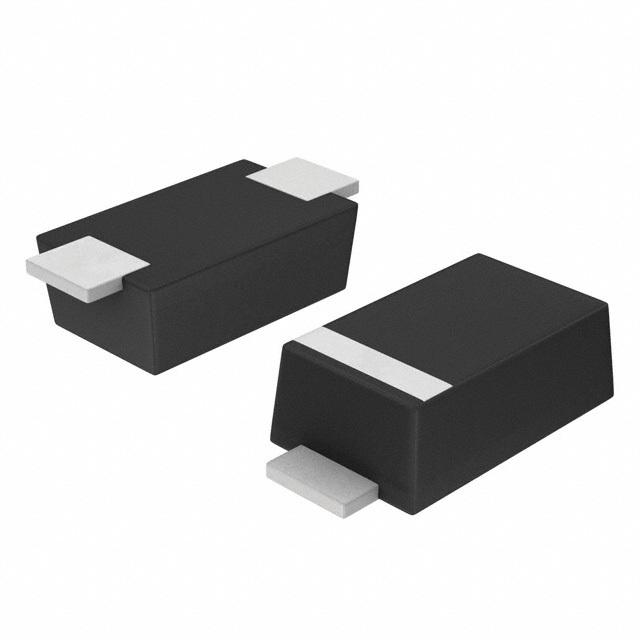

200 W Transient Voltage Suppressor SOD-123 Flat Lead Package

The SMF5.0AT1G Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low zener impedance and fast response time. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and many other industrial/consumer applications.

Features

• Stand−off Voltage: 5 − 58 Volts

• Peak Power − 200 Watts @ 1 ms SMF5.0A − SMF58A

• Low Leakage

• Response Time is Typically < 1 ns

• ESD Rating of Class 3 > 16 kV per Human Body Model

• ESD Rating of Level 4 8 kV Contact Discharge per IEC61000−4−2

• EFT Electrical Fast Transients Rating of 40 A per IEC61000−4−4

• Low Profile − Maximum Height of 1.0 mm

• Small Footprint − Footprint Area of 8.45 mm2

• Supplied in 8 mm Tape and Reel − 3,000 Units per Reel

• Cathode Indicated by Polarity Band

• Lead Orientation in Tape: Cathode Lead to Sprocket Holes

• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free and are RoHS Compliant

.
