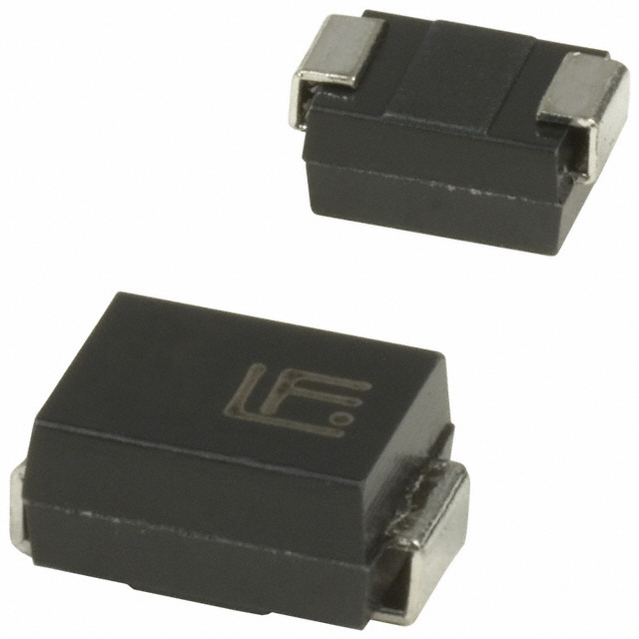

LITTELFUSE SMBJ220A 二极管, TVS, 220V
Save yourself hassle by equipping your device with "s TVS diode which will react to sudden or momentary overvoltage conditions. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device"s maximum clamping voltage is 356 V and minimum breakdown voltage is 246 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
额定电压DC 220 V
额定功率 600 W
击穿电压 259 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 356 V
测试电流 1 mA
最大反向击穿电压 272 V
脉冲峰值功率 600 W
最小反向击穿电压 246 V
击穿电压 246 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

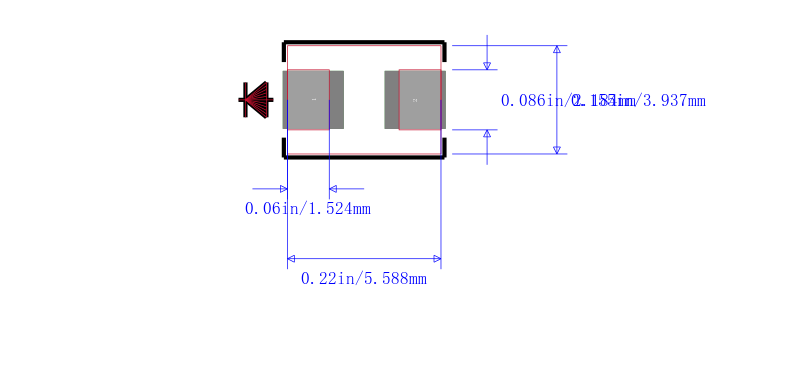

封装 DO-214AA
长度 4.57 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ220A Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMB250A 力特 | 类似代替 | SMBJ220A和P6SMB250A的区别 |
P6SMB250A-E3/52 威世 | 功能相似 | SMBJ220A和P6SMB250A-E3/52的区别 |
