SMCJ160A

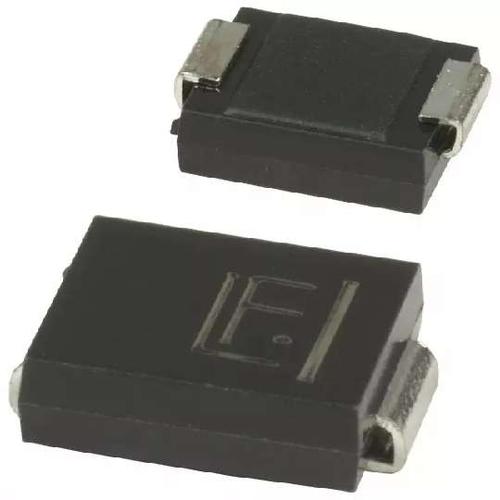

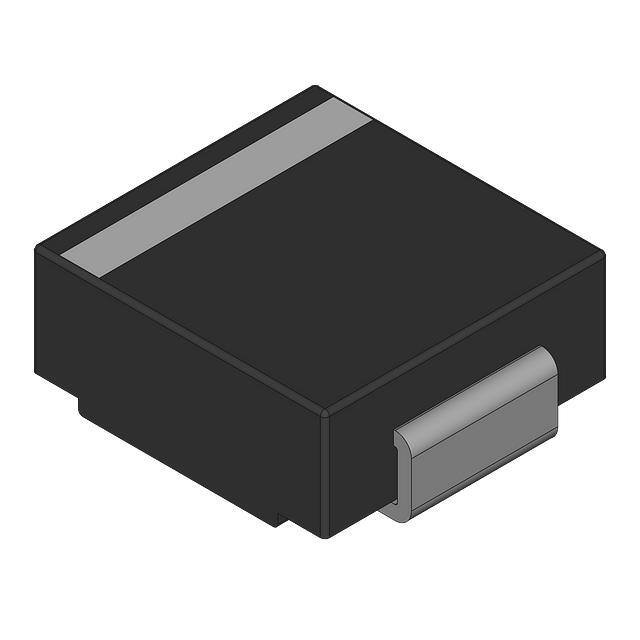

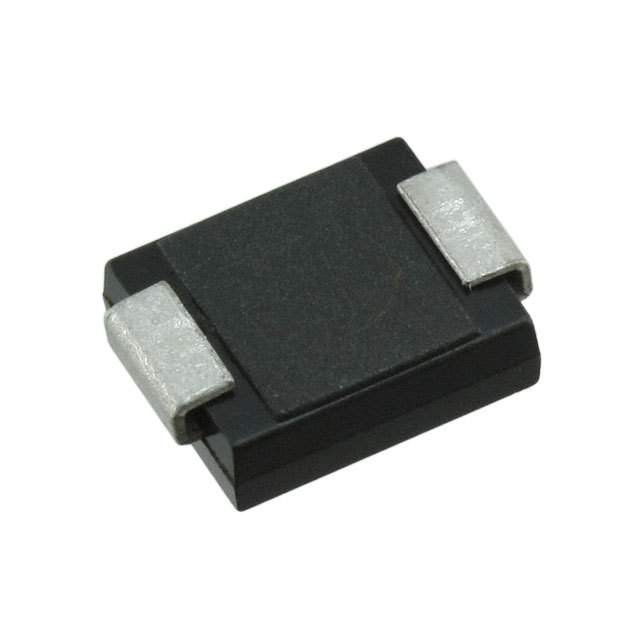

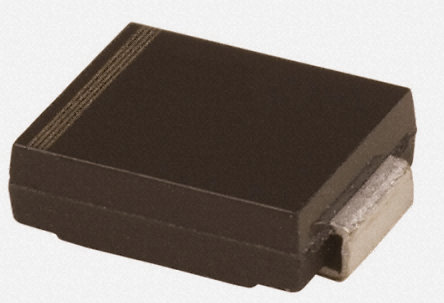

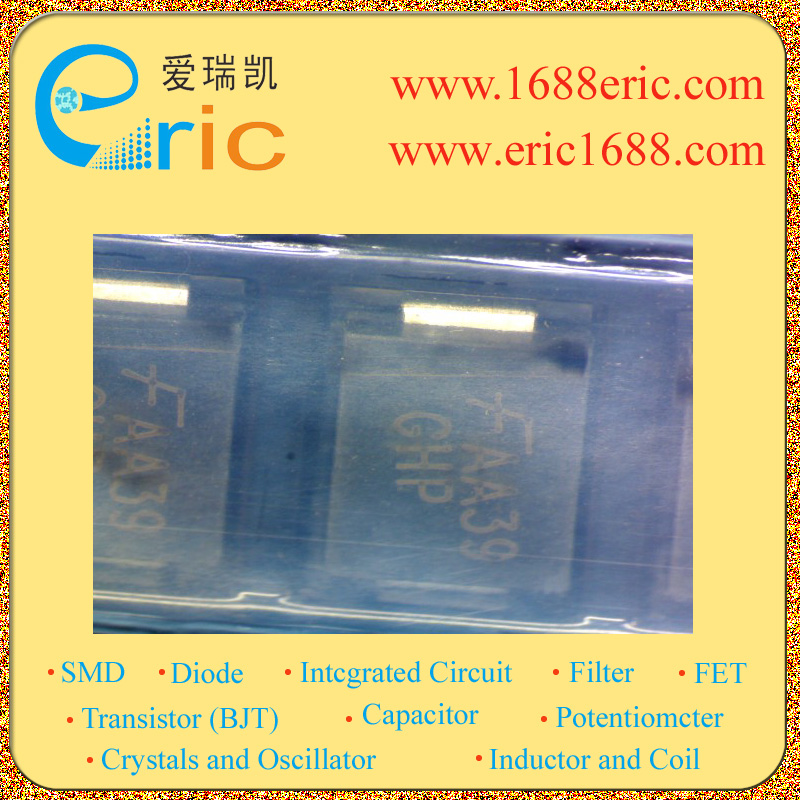

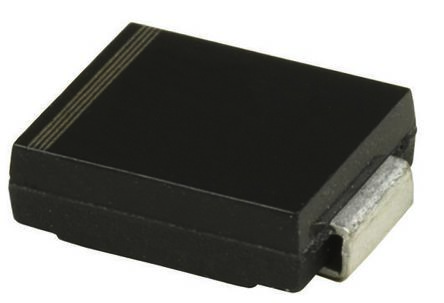

SMCJ160A 瞬态抑制二极管TVS/ESD 160V 5.8A DO-214AB/SMC-160V 标记GHP

极性Polarization| 单向 Unidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 160V 反向击穿电压VBRBreakdown Voltage| 187.5V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 1500W 峰值脉冲电流IPPmPeak Forward Surge Current| 5.8A 额定耗散功率PdPower dissipation| Description & Applications| Features • Transient Voltage Suppressors • Glass passivated junction. • 1500 W Peak Pulse Power capability on 10/1000 µs waveform. • Excellent clamping capability. • Low incremental surge resistance. • Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. • Typical IR less than 1.0 µA above 10V. • UL certified, UL #E210467. 描述与应用| 特点 •瞬态电压抑制器 •玻璃钝化结。 •1500 W峰值脉冲功率10/1000微秒的能力波形。 •出色的钳位能力。 •低增量浪涌电阻。 •快速响应时间通常小于1.0 ps的单向和5.0纳秒为从0伏到BV双向的。 •小于1.0μA典型的IR10V以上。 •UL认证，UL E210467。
