超快恢复 - 高电压二极管 Ultrafast recovery - high voltage diode

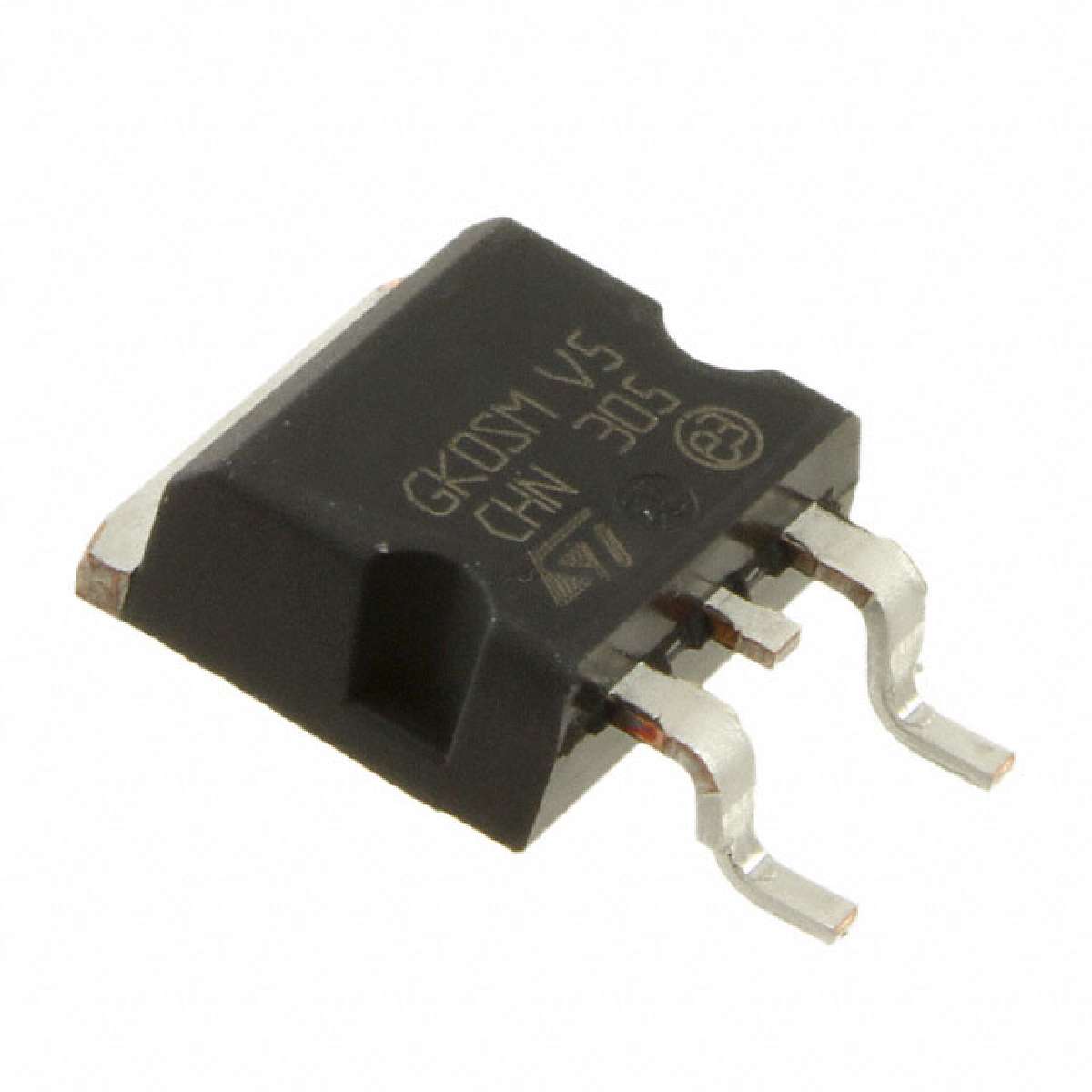

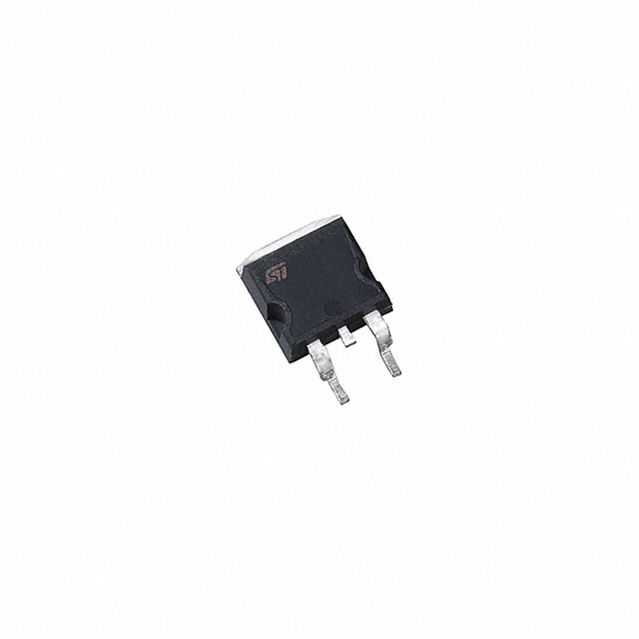

标准 8A 表面贴装型 D2PAK
得捷:
DIODE GEN PURP 1KV 8A D2PAK
e络盟:
快速/超快二极管, 1 kV, 8 A, 单, 2 V, 85 ns, 60 A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode STTH810G-TR rectifier from STMicroelectronics. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 175 °C. Its peak non-repetitive surge current is 60 A, while its maximum continuous forward current is 8 A.
安富利:
Diode Switching 100V 8A 3-Pin2+Tab D2PAK T/R
富昌:
STTH810 Series 8 A 1.3 V 85 ns Ultrafast Recovery Diode Surface Mount - D2PAK
Chip1Stop:
Diode Switching 100V 8A 3-Pin2+Tab D2PAK T/R
Verical:
Rectifier Diode Switching 1KV 8A 85ns 3-Pin2+Tab D2PAK T/R
儒卓力:
**RECT 1000V 8A 1,30V TO263 **
Win Source:
DIODE GEN PURP 1KV 8A D2PAK
正向电压 2V @8A
热阻 2.5 ℃/W
反向恢复时间 85 ns
正向电流 8000 mA
最大正向浪涌电流(Ifsm) 60 A
正向电压Max 2V @8A
正向电流Max 8000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Surface Mount

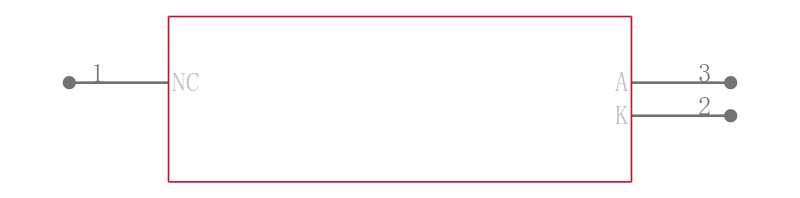

引脚数 3

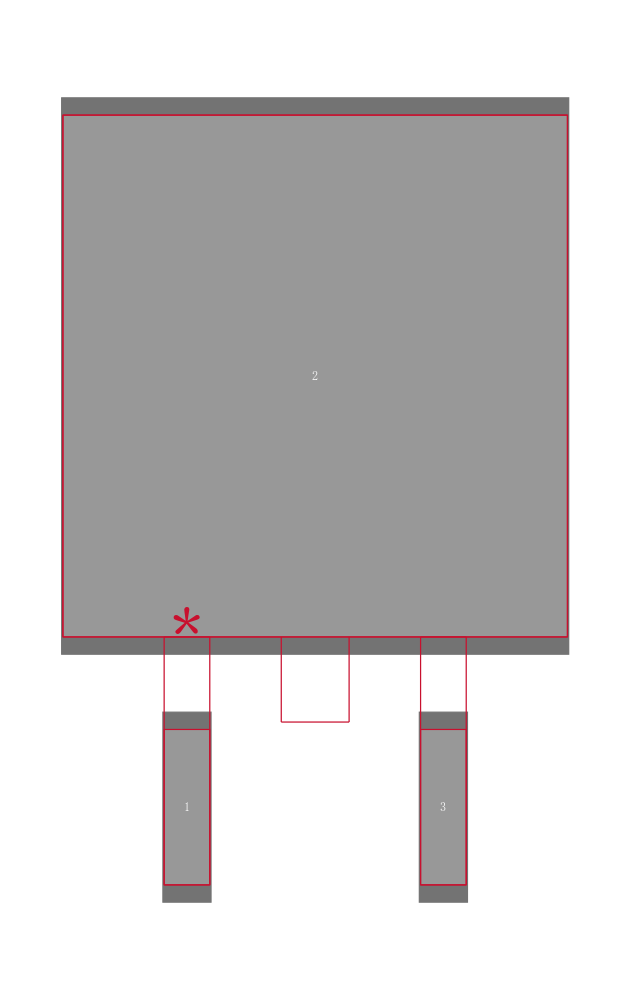

封装 TO-263-3
宽度 9.35 mm
封装 TO-263-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH810G-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH810G 意法半导体 | 类似代替 | STTH810G-TR和STTH810G的区别 |
BY229B-800-E3/45 威世 | 功能相似 | STTH810G-TR和BY229B-800-E3/45的区别 |
