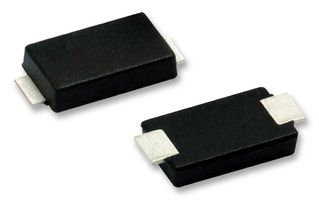

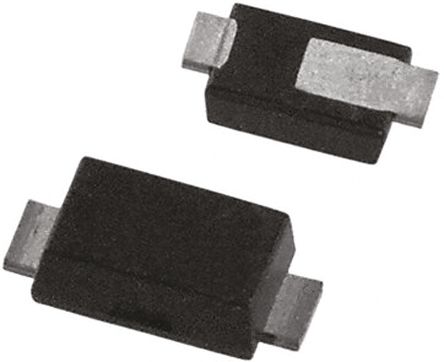

VISHAY SMA6F6.0A-M3/6A TVS二极管, TVS, TRANSZORB SMA6F系列, 单向, 6 V, 13.7 V, DO-221AC, 2 引脚
The TRANSZORB SMA6F series surface-mount Transient Voltage Suppressor Diode ideal for automated placement. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
击穿电压 7.41 V
针脚数 2
耗散功率 1 W
钳位电压 13.7 V
测试电流 10 mA
最大反向击穿电压 7.41 V
脉冲峰值功率 600 W
最小反向击穿电压 6.7 V
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-221AC
长度 5.35 mm
宽度 2.7 mm
高度 1 mm
封装 DO-221AC
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Unknown
包装方式 Each
制造应用 Industrial, Automotive, 通用, Lighting, Consumer Electronics, Sensing & Instrumentation, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
