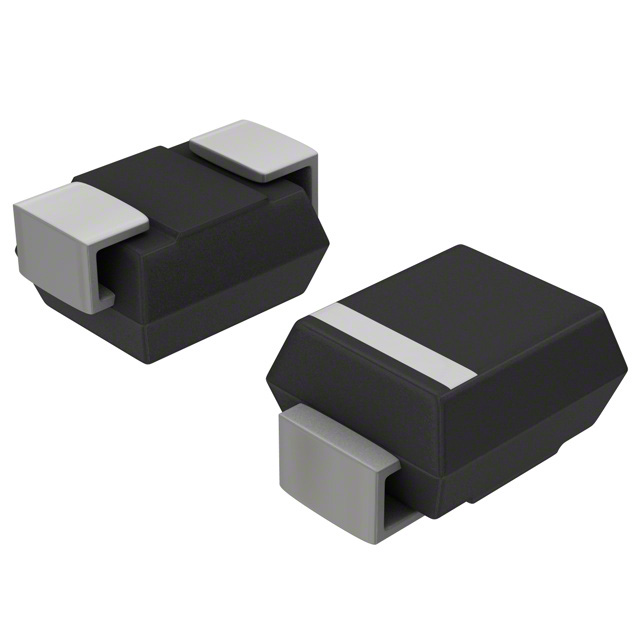

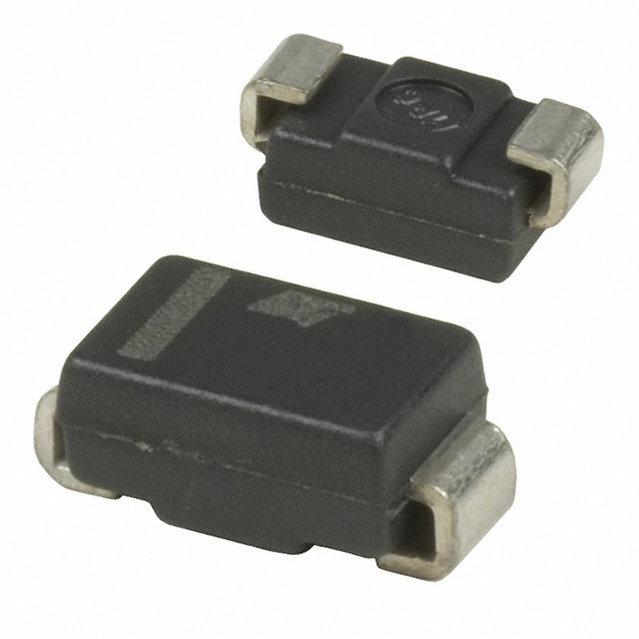

SMA6 系列 600 W 44.3 V 单向 瞬态电压抑制器 - DO-214AC
44.3V 夹子 80A(8/20µs) Ipp TVS - 表面贴装型 SMA(DO-214AC)
欧时:
STMicroelectronics, SMA6J24A-TR
立创商城:
Vrwm:24V 600W
得捷:
TVS DIODE 24VWM 44.3VC SMA
艾睿:
Implement surge protection with this SMA6J24A-TR TVS diode from STMicroelectronics. Its maximum leakage current is 0.2 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 44.3 V and minimum breakdown voltage is 26.7 V. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
安富利:
Diode TVS Single Uni-Dir 24V 600W 2-Pin SMA T/R
富昌:
SMA6 Series 600 W 44.3 V Uni Directional Transient Voltage Suppressor - DO-214AC
Chip1Stop:
Diode TVS Single Uni-Dir 24V 600W 2-Pin SMA T/R
Verical:
Diode TVS Single Uni-Dir 24V 600W 2-Pin SMA T/R
电路数 1
耗散功率 600 W
钳位电压 44.3 V
最大反向电压(Vrrm) 24V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 26.7 V
击穿电压 26.7 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.95 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMA6J24A-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SMA6T28AY 意法半导体 | 功能相似 | SMA6J24A-TR和SMA6T28AY的区别 |
SM6HT27A 意法半导体 | 功能相似 | SMA6J24A-TR和SM6HT27A的区别 |
P6SMB27 Central Semiconductor | 功能相似 | SMA6J24A-TR和P6SMB27的区别 |
