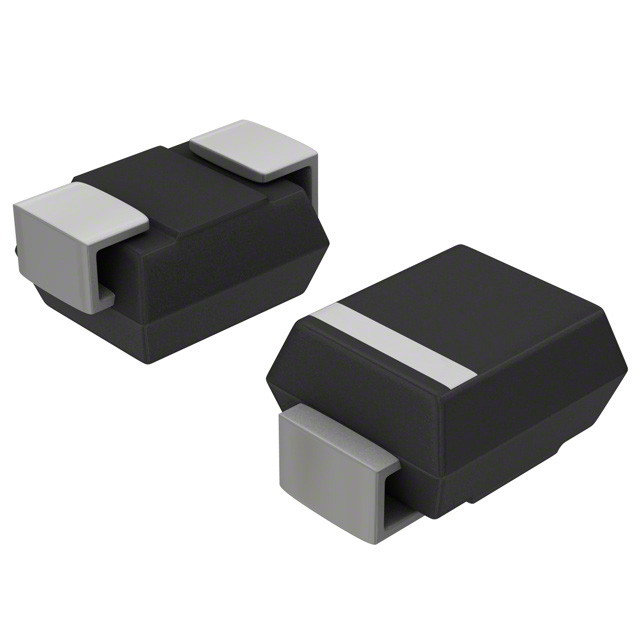

SMA6 系列 600 W 180 V 单向 瞬态电压抑制器 - DO-214AC
265V Clamp 12.6A 8/20µs Ipp Tvs Diode Surface Mount SMA DO-214AC
立创商城:
单向 Vrwm:154V
得捷:
TVS DIODE 154VWM 265VC SMA
艾睿:
Do not risk expensive equipment and machinery from surges with this SMA6J154A-TR TVS diode from STMicroelectronics. Its maximum leakage current is 0.2 μA. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This device&s;s maximum clamping voltage is 265 V and minimum breakdown voltage is 171 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
安富利:
Diode TVS Single Uni-Dir 154V 600W 2-Pin SMA T/R
富昌:
SMA6 系列 600 W 180 V 单向 瞬态电压抑制器 - DO-214AC
Chip1Stop:
Diode TVS Single Uni-Dir 154V 600W 2-Pin SMA T/R
儒卓力:
**TRANSIL UNI 0,6KW 180V SMA **
击穿电压 180 V
电路数 1
耗散功率 600 W
钳位电压 265 V
最大反向电压(Vrrm) 154V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 171 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.95 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMA6J154A-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SM6T150A 意法半导体 | 功能相似 | SMA6J154A-TR和SM6T150A的区别 |
SM6T200A 意法半导体 | 功能相似 | SMA6J154A-TR和SM6T200A的区别 |
P6SMB200A 力特 | 功能相似 | SMA6J154A-TR和P6SMB200A的区别 |
