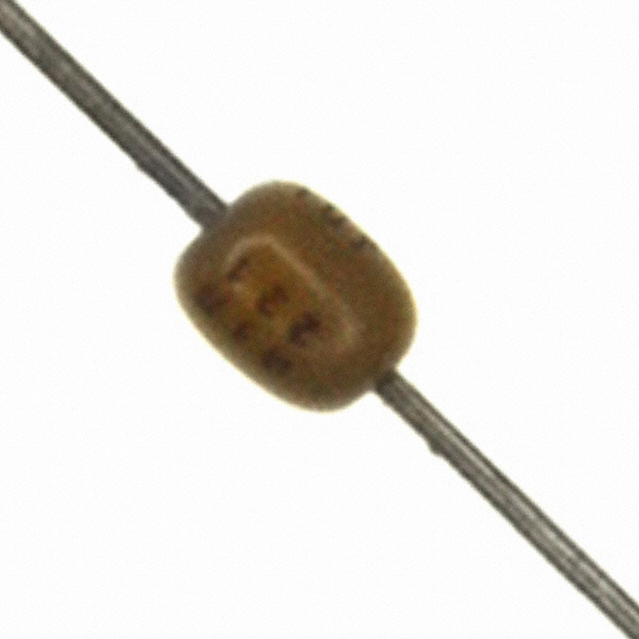

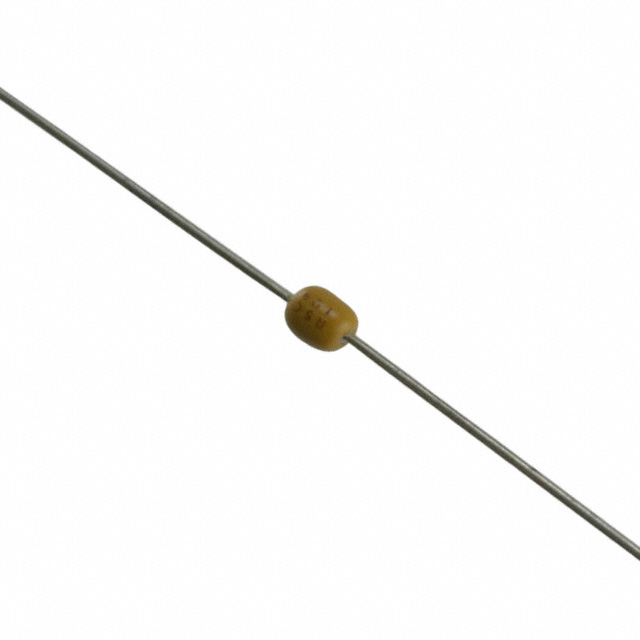

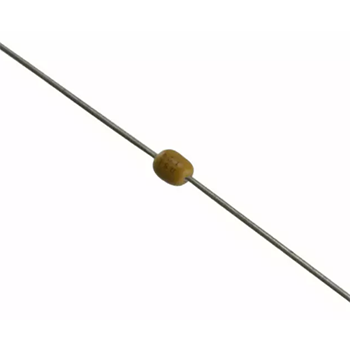

AVX SA101A221JAR 陶瓷电容, 220pF, 100V, C0G/NP0, 轴向引线
陶瓷器
欧时:
### SA 系列C0G 电介质 保护涂层 ### C0G 电介质### C0G NP0 电介质这些电容器性能稳定、可预测,不随温度和时间变化,适用于要求高质量和良好稳定性的电路滤波、采样、保持和定时等应用。
得捷:
CAP CER 220PF 100V C0G/NP0 AXIAL
e络盟:
陶瓷电容, 220pF, 100V, C0G/NP0, 轴向引线
艾睿:
Get more with less with AVX&s;s SA101A221JAR multilayer ceramic capacitor which uses multiple layers of ceramic and metal to act as dielectric and electrodes. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This product is 4.32Max mm long with a diameter of 2.54Max mm. The SA101A221JAR MLCC capacitor has an axial termination style. Its capacitance value is 220pF.
安富利:
Cap Ceramic 220pF 100V C0G 5% Axial 125°C T/R
Verical:
Cap Ceramic 220pF 100V C0G 5% Axial 125C T/R
Newark:
# AVX SA101A221JAR Multilayer Ceramic Capacitor, 220 pF, 100 V, SpinGuard SA Series, ± 5%, Axial Leaded, C0G / NP0
额定电压DC 100 V
电容 220 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2
封装 剪切带
引脚间距 25.4 mm
长度 4.32 mm
直径 2.54 mm
脚长度 25.4 mm
封装 剪切带
引脚间距 25.4 mm
内径尺寸 445 µm
材质 NP0/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 7500
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SA101A221JAR AVX 艾维克斯 | 当前型号 | 当前型号 |
SA101A221JAA 艾维克斯 | 完全替代 | SA101A221JAR和SA101A221JAA的区别 |
C410C221J1G5TA7200 基美 | 类似代替 | SA101A221JAR和C410C221J1G5TA7200的区别 |
