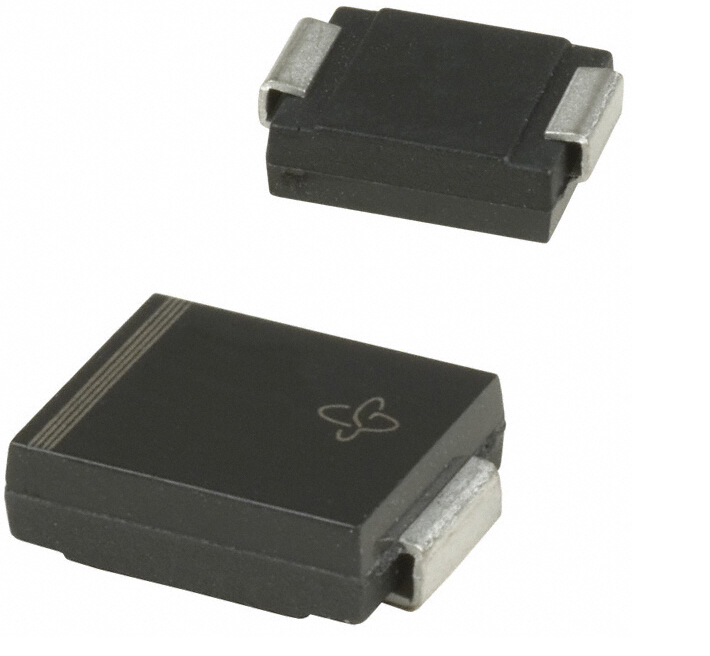

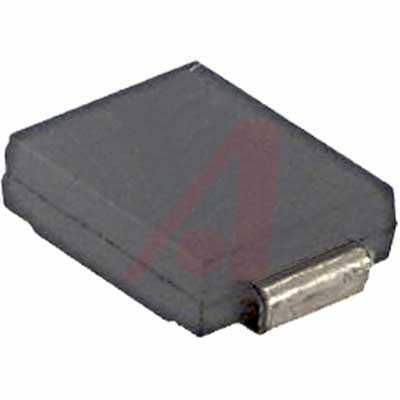

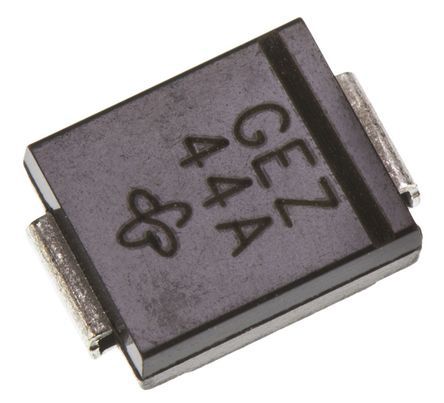

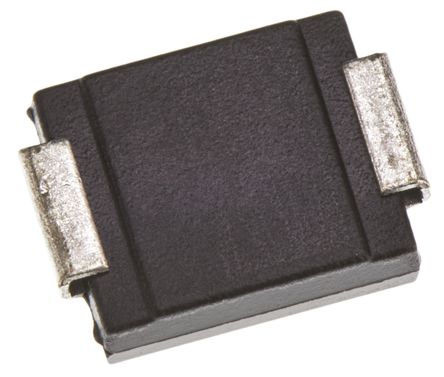

VISHAY SMCJ24A-E3/57T. 二极管, TVS, 1.5KW, 24V, DO-214AB
The TRANSZORB SMCJ series surface-mount Transient Voltage Suppressor Diode offers excellent clamping capability. It is available in unidirectional and bidirectional and ideal for automated placement. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Glass passivated chip junction
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
额定电压DC 24.0 V
工作电压 24 V
额定电流 38.6 A
额定功率 1.50 kW
击穿电压 26.7 V
电路数 1
针脚数 2
耗散功率 1500 W
钳位电压 38.9 V
测试电流 1 mA
最大反向击穿电压 29.5 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 26.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Consumer Electronics, Industrial, Sensing & Instrumentation, 车用, Computers & Computer Peripherals, Lighting, Communications & Networking, 通用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ24A-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMCJ24A-M3/9AT 威世 | 类似代替 | SMCJ24A-E3/57T和SMCJ24A-M3/9AT的区别 |
SMCJ24A-M3/57T 威世 | 类似代替 | SMCJ24A-E3/57T和SMCJ24A-M3/57T的区别 |
SMCJ24A 力特 | 功能相似 | SMCJ24A-E3/57T和SMCJ24A的区别 |
