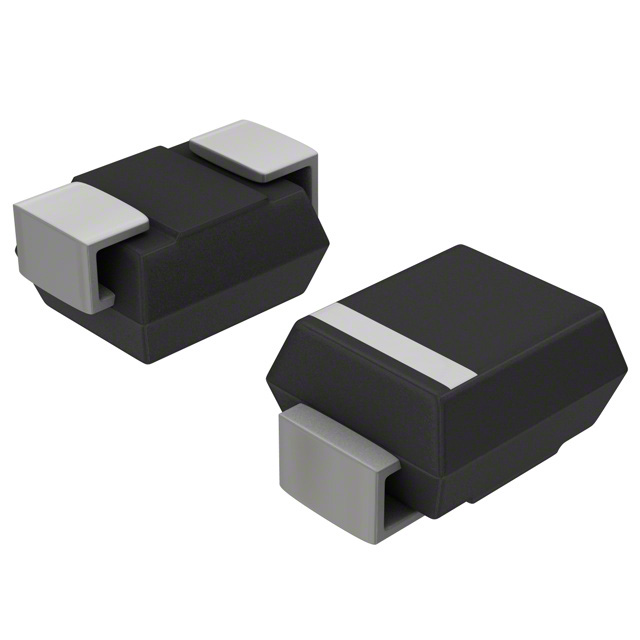

SMA6系列 600 W 67.8 V 双向 瞬态电压抑制器 - DO-214AC
100V Clamp 33A 8/20µs Ipp Tvs Diode Surface Mount SMA DO-214AC
得捷:
TVS DIODE 58VWM 100VC SMA
立创商城:
Vrwm:58V 600W
贸泽:
ESD Suppressors / TVS Diodes HJ Temp Transil
艾睿:
Do not risk expensive equipment and machinery from surges with this SMA6J58CA-TR TVS diode from STMicroelectronics. Its test current is 1 mA. This device&s;s maximum clamping voltage is 100 V and minimum breakdown voltage is 64.4 V. Its maximum leakage current is 0.2 μA. Its peak pulse power dissipation is 600 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
安富利:
Diode TVS Single Bi-Dir 58V 600W 2-Pin SMA T/R
Chip1Stop:
Diode TVS Single Bi-Dir 58V 600W 2-Pin SMA T/R
Verical:
Diode TVS Single Bi-Dir 58V 600W 2-Pin SMA T/R
Win Source:
TVS DIODE 58VWM 100VC SMA
击穿电压 67.8 V
电路数 1
耗散功率 600 W
钳位电压 100 V
最大反向电压(Vrrm) 58V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 64.4 V
击穿电压 64.4 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 5.35 mm
高度 2.03 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
