ESD保护二极管,低电容,单向
Protect your electronic components and circuit from dangerous electrostatic discharge with this tvs ESD protection device from . This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±10@Contact Disc kV. This device"s maximum clamping voltage is 9.8 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. Its capacitance value is 0.9 pF.
电容 0.9 pF
击穿电压 5.4 V
通道数 1
针脚数 2
耗散功率 150 mW
钳位电压 9.8 V
测试电流 1 mA
最小反向击穿电压 5.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 2

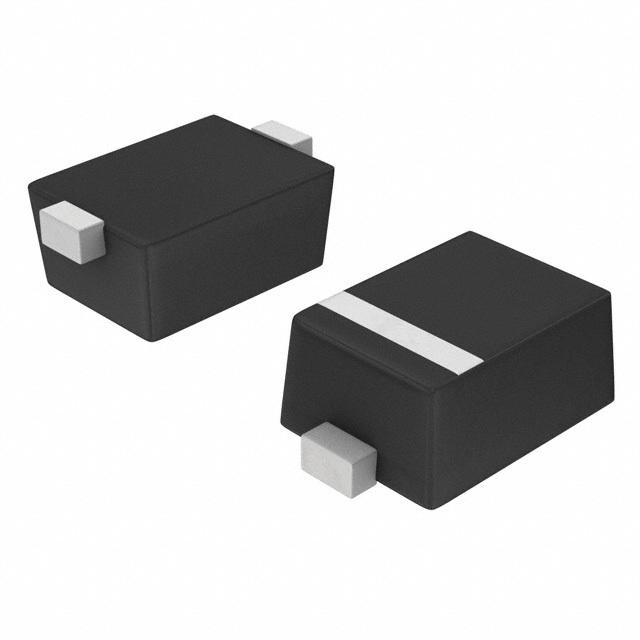

封装 SOD-923
封装 SOD-923
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SESD9L5.0ST5G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
ESD9L5.0ST5G 安森美 | 功能相似 | SESD9L5.0ST5G和ESD9L5.0ST5G的区别 |
