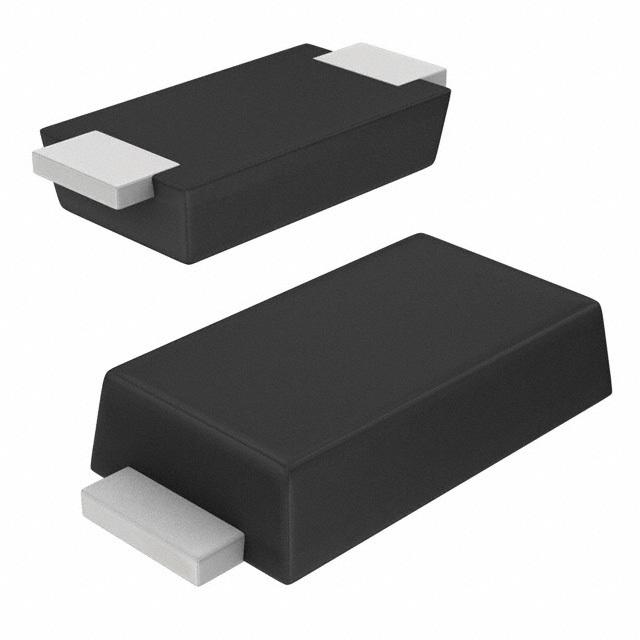

TVS SMA6L 15V 单向 13"" 卷盘
24.4V Clamp 24.6A Ipp Tvs Diode Surface Mount DO-221AC
得捷:
TVS DIODE 15VWM 24.4VC DO221AC
立创商城:
Vrwm:15V 600W
艾睿:
This SMA6L15A TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its maximum leakage current is 1 μA. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This device&s;s maximum clamping voltage is 24.4 V and minimum breakdown voltage is 16.7 V. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Uni-Dir 15V 600W 2-Pin DO-221AC T/R
电路数 1
钳位电压 24.4 V
测试电流 1 mA
最大反向击穿电压 18.5 V
脉冲峰值功率 600 W
最小反向击穿电压 16.7 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

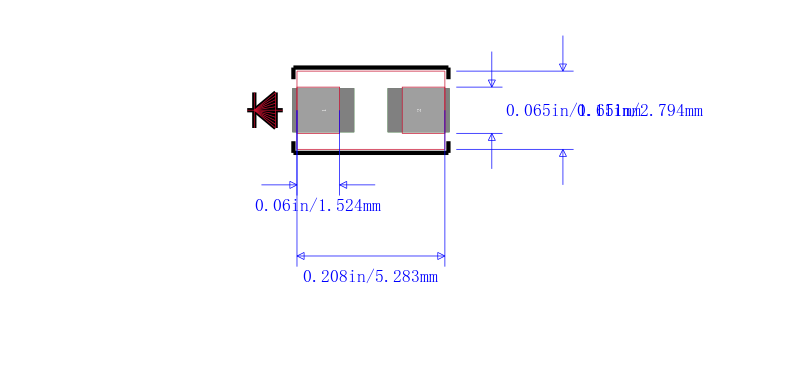

封装 DO-221AC
长度 4.6 mm
宽度 2.95 mm
高度 1.1 mm
封装 DO-221AC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMA6L15A Littelfuse 力特 | 当前型号 | 当前型号 |
TPSMA6L15A 力特 | 完全替代 | SMA6L15A和TPSMA6L15A的区别 |
SMA6L16A 力特 | 类似代替 | SMA6L15A和SMA6L16A的区别 |
P6SMB18A 力特 | 功能相似 | SMA6L15A和P6SMB18A的区别 |
