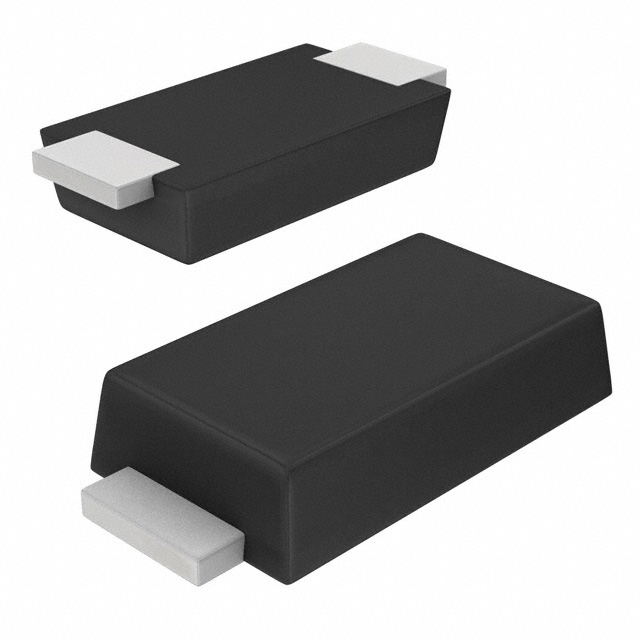

SMA6L9.0A

TVS SMA6L 9.0V 单向 13"" 卷盘

15.4V Clamp 39A Ipp Tvs Diode Surface Mount DO-221AC

立创商城:
Vrwm:9V 600W

得捷:
TVS DIODE 9VWM 15.4VC DO221AC

贸泽:
ESD Suppressors / TVS Diodes 9Vr 600W 39A 5% UniDirectional

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this SMA6L9.0A TVS diode from Littelfuse. Its maximum leakage current is 10 μA. This device&s;s maximum clamping voltage is 15.4 V and minimum breakdown voltage is 10 V. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Chip1Stop:
Diode TVS Single Uni-Dir 9V 600W 2-Pin DO-221AC T/R
