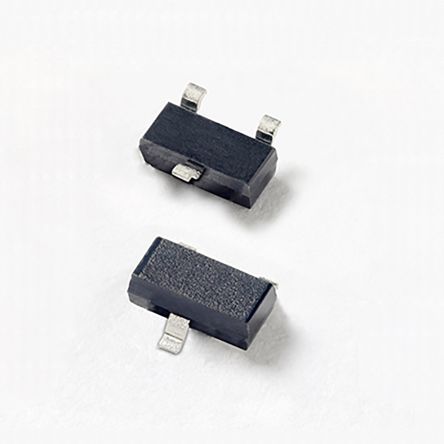

SM24CAN 系列 50 V 500 W 表面贴装 双向 TVS 二极管 - SOT-23
This tvs ESD protection device from , will prevent from a costly fix if your system is to be hit with electrostatic discharge. This device"s maximum clamping voltage is 50 V. This ESD diode has a maximum ESD protection device voltage of ±30Min@Air Gap/±30Min@Contact Disc kV. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its capacitance value is 30Typ pF. It is made in a dual configuration.
工作电压 24 V
电容 30 pF
击穿电压 26.7 V
通道数 2
针脚数 3
耗散功率 500 W
钳位电压 50 V
脉冲峰值功率 500 W
最小反向击穿电压 26.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.12 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级,CAN
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
