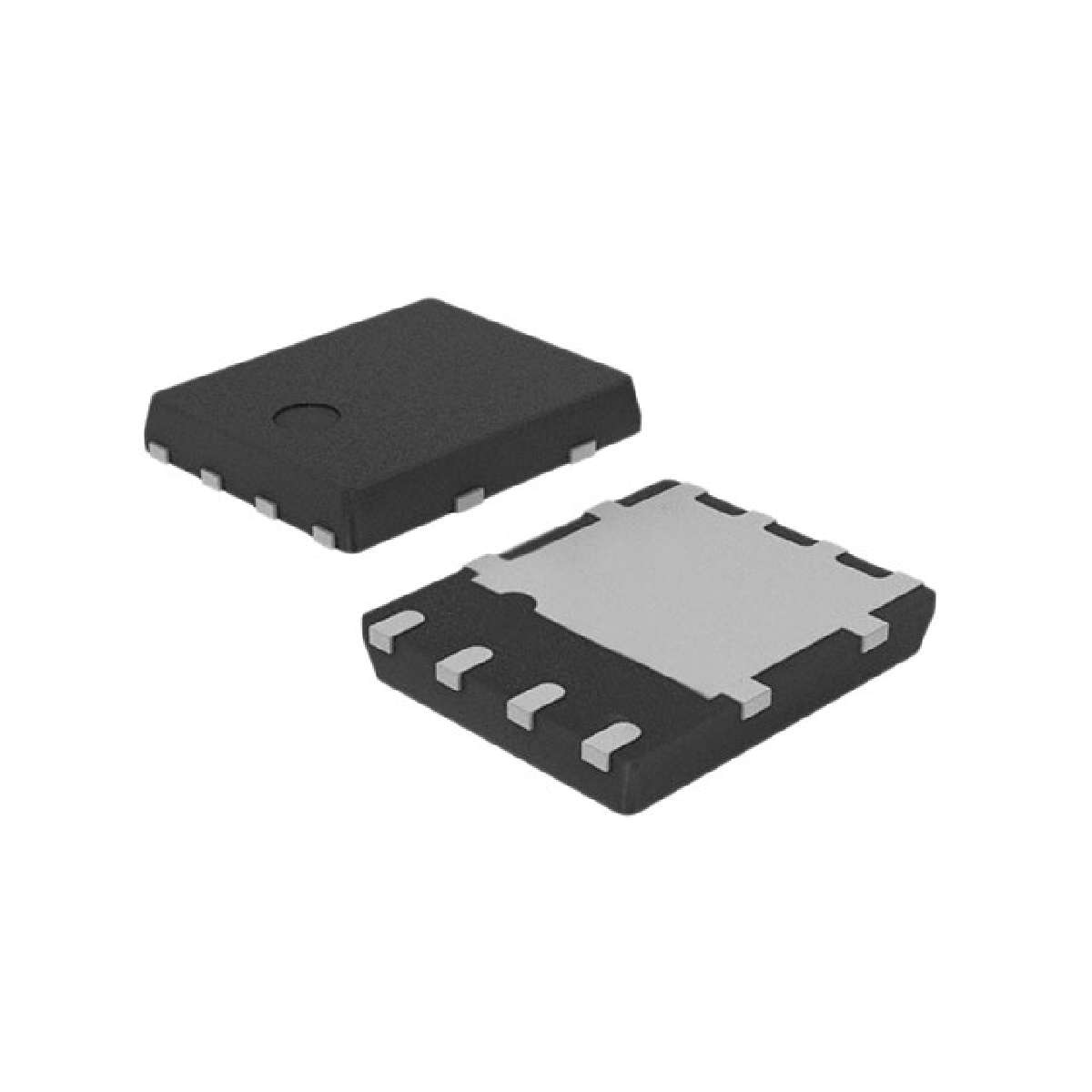

STMICROELECTRONICS STPS30H100DJF-TR 小信号肖特基二极管, 单, 100 V, 30 A, 840 mV, 250 A, 150 °C
肖特基 100 V 30A 表面贴装型 PowerFlat™(5x6)
得捷:
DIODE SCHOTTKY 100V 30A PWRFLAT
欧时:
STMicroelectronics, STPS30H100DJF-TR
贸泽:
Schottky Diodes & Rectifiers Pwr Schottky 30A 100VRRM 0.56VF
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode STPS30H100DJF-TR rectifier from STMicroelectronics. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 250 A, while its maximum continuous forward current is 30 A. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a single dual anode configuration.
安富利:
Diode Schottky 100V 30A 8-Pin Power FLAT T/R
Chip1Stop:
Diode Schottky 100V 30A 8-Pin Power Flat T/R
Verical:
Rectifier Diode Schottky 100V 30A 8-Pin Power Flat T/R
Newark:
# STMICROELECTRONICS STPS30H100DJF-TR Rectifier Diode, Single, 100 V, 30 A, 840 mV, 250 A, 150 C
儒卓力:
**SCHOTTKY 100V 30A PowerFLAT 5x6 **
针脚数 8
正向电压 840mV @30A
热阻 2℃/W RθJC
正向电流 30 A
最大正向浪涌电流(Ifsm) 250 A
正向电压Max 840 mV
正向电流Max 30000 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
工作结温 150℃ Max
安装方式 Surface Mount
引脚数 8
封装 PowerVDFN-8
长度 6.15 mm
宽度 5.2 mm
高度 0.8 mm
封装 PowerVDFN-8
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
